mains 2G10 LED 18W lamp

2G10 LED, 9W 2G10 LED CFL

mains 2G10 LED 18W lamp

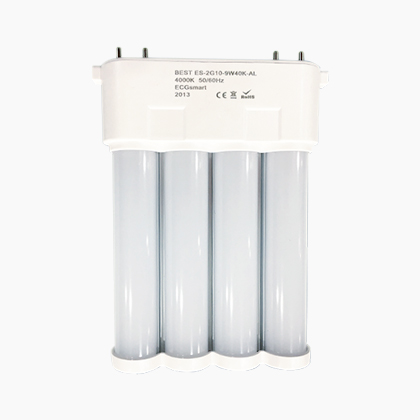

產品型號: AC-IN 2G10 9W LED lamp

AC mains operation 4 pin 2G10 LED lamp solution. Help replace old 2G10 18W fluorescent tube with minor modification in fixture. The 2G10 LED lamp has high lumen and big brand LED chips to achieve good color consistency, high lumen output and long life time service. Good quality ...
加入詢問
產品特色

AC mains operation 4 pin 2G10 LED lamp solution. Help replace old 2G10 18W fluorescent tube with minor modification in fixture. The 2G10 LED lamp has high lumen and big brand LED chips to achieve good color consistency, high lumen output and long life time service. Good quality aluminum housing and PCB is in place for better heat dissipation. Well-designed constant current built-in LED driver to allow LED lamp function stable and free of flicking. CE and RoHS compliant.

(Model: AC-IN 2G10 9W LED tube)
Magnetic ballast compatibility
Mains voltage (100V ~ 240V) compatibility
Help retrofit conventional 2G10 18W DULUX F compact fluorescent lamp
Re-using the existing fixture without major modifications
Over 30,000-hour life time
Better Color rendering index Ra ≥ 82
Mercury-free and RoHS compliant
High color consistency of light over life of lamp
Capable of operation at low temperature
Good quality aluminum housing to prevent bending or warping

AC mains operation 4 pin 2G10 LED lamp solution. Help replace old 2G10 18W fluorescent tube with minor modification in fixture. The 2G10 LED lamp has high lumen and big brand LED chips to achieve good color consistency, high lumen output and long life time service. Good quality aluminum housing and PCB is in place for better heat dissipation. Well-designed constant current built-in LED driver to allow LED lamp function stable and free of flicking.

AC-IN 2G10 LED retrofit lamps provide compatible functions to work with conventional control gear (CCG, or called magnetic ballast) or AC main power compatibility. Due to the built-in fuse in place, the installation of LED lamps can be much safer.

The whole series AC-in 2G10 LED solutions can substitute old DULUX F 18W, 24W, 36W 4 pin base CFL. If you need information about electronic ballast compatible 2G10 LED CFL or want to know more about our other LED solutions, always welcome to contact with customers service team or specialist to know more about them.

規格表
Descriptions Value
Direct Replacement Target Traditional fluorescent 2G10 18w DULUX F lamp
Compatibility Magnetic ballast or AC mains input  ( 100V ~ 240V)
direct DC power supply (141-338V)
Driving Voltage 100V ~ 240V
DC power supply: 141-338V
Wattage 9W
Conventional Wattage Equivalent 18W
Base Cap 2G10
Life Span (Hours) 30000 hours
Lumens per Watt 150 lm/W
Lumens 1350 lm
Length 217 mm
Color Rendering Index (CRI) Ra > 82
Beam Angle (Degrees) 180
Color Temperature (CCT) 2700K ~ 6500K
End cap type Aluminum or plastic
PC cover Clear / Milky
規格表
Order number Direct Retrofit Target
SW-2G10-9W27K-AL Old 2G10 18W 2700K DULUX F CFL
SW-2G10-9W30K-AL Old 2G10 18W 3000K DULUX F CFL
SW-2G10-9W40K-AL Old 2G10 18W 4000K DULUX F CFL
SW-2G10-9W50K-AL Old 2G10 18W 5000K DULUX F CFL
SW-2G10-9W60K-AL Old 2G10 18W 6000K DULUX F CFL
SW-2G10-9W65K-AL Old 2G10 18W 6500K DULUX F CFL
