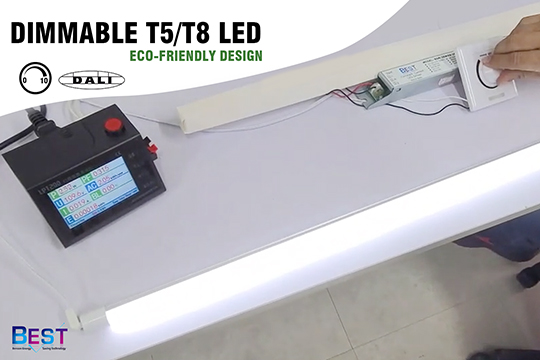

T5 / T8 LED Dimmable Climate-Friendly tubes - Non-Mains LED light source

The most potential LED light source that can be easily upgraded to intelligent lighting systems.

The most advanced and climate-friendly LED tubes on Earth. We design the dimmable LED tubes based on the eco-friendly and sustainable for the future.

More about BEST Dimmable LED products:
T8 LED lamps:https://www.best-energysaving-tech.com/en/products/T8_LED/T8_Dimmable/sub_2.html
T5 LED lamps:https://www.best-energysaving-tech.com/en/products/T5_LED/T5_Dimmable/sub_2.html


Benefits: almost the same as old fluorescent tubes, with higher lumen efficacy and controllable energy saving. Mercury-free and RoHS compliant. Without built-in Drivers, sustainability and long-life 5 years guarantee.

Replacement Target:

T5 HE FL: 1204lm (R14W), 1890lm(R21W), 2604lm(R28W), 3290lm(R35W)
T5 HO FL: 1752lm(R24W), 3081lm(R39W), 4312lm(R49W), 4428lm(R54W), 6160lm(R80W)
T8 FL: 945lm(R15W), 1350lm(R18W), 1900lm(R25W), 2400lm(R30W), 3348lm(R36W), 3306lm(R38W), 5220lm(R58W)

CRI >80 , R9 color rendering index >1
Rated CCT: 2700K, 3000K, 4000K, 5000K, 6000K, 6500K
Beam angle in degrees: 140 degree
Survival factor: 100%
The lumen maintenance factor 96%
Color consistency in McAdam ellipses: 6SDCM
Rated life time: 50,000 hrs
Lumen efficacy set up 140lm/W
Energy loss < 0W (connect to ECG / LED driver)
NEW Energy label level: E / D in Europe market

Support Dimming system:

External electronic ballast (ECG) - with DALI system

External LED drivers - 0-10V, DALI system
We can also produce dimming LED drivers to support T5/T8 dimmable LED Tubes.
Please contact us for more information.
