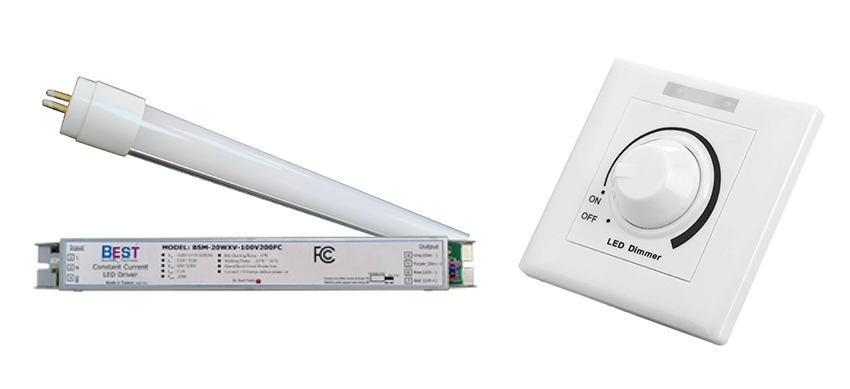

T5 LED tube + 0-10V external LED driver + dimmer

The BEST dimming LED tube set is designed to effectively reduce energy consumption under the concept of circular economy. It is easier and more convenient to adjust the brightness by hand. BENSON ENERGY SAVING TECHNOLOGY provides high quality LED products -- the high brightness, high stability and long life are the best in LED lighting industry.

Feature:
Dimming method: 0-10V
Dimming LED tube: T5 (G5) LED tubes, 50,000hrs lifespan, CE & RoHs certification, flicker free.
Installation Luminaire: Can be installed in all luminaires for T5 (G5) fluorescent tubes.
Applications: small area, machines, working platform, other manual adjust brightness area

Dimming:
Dimmer switch off, the lighting is off
Dimmer switch on, 10% to 100% brightness can be adjusted from the left to the right.
Stable dimming quality, long-life, Energy-saving effectiveness, Lumen Maintenance ≧70% (IESNA LM-80 standard), High Quality, CE, RoHS certification.

Q1 What lumen output do you need?
Ans.
2000lm above: T5 HE 1ft 5W, T5 HE 2ft 8W, T5 HE 3ft 12W, T5 HE 4ft 16W, T5 HO 2ft 13W
2500lm above: T5 HE 5ft 22W, T5 HO 3ft 23W
3500lm above: T5 HO 4ft 32W, T5 HO 5ft 31W
5000lm above: T5 HO 5ft 44W
※ Lumen output can be customized.

Q2. How many LED tubes can be activated by ONE LED driver?
Ans.
T5 HE 1ft 5W:1~4pcs, T5 HE 2ft 8W:1~4 pcs, T5 HE 3ft 12W:1~2 pcs, T5 HE 4ft 16W:1~4pcs, T5 HO 2ft 13W:1~2pcs
T5 HE 5ft 22W:1~2pcs, T5 HO 3ft 23W:1~2pcs
T5 HO 4ft 32W:1~2pcs, T5 HO 5ft 31W:1~2pcs
T5 HO 5ft 44W:1~2pcs
※ Customized availible.

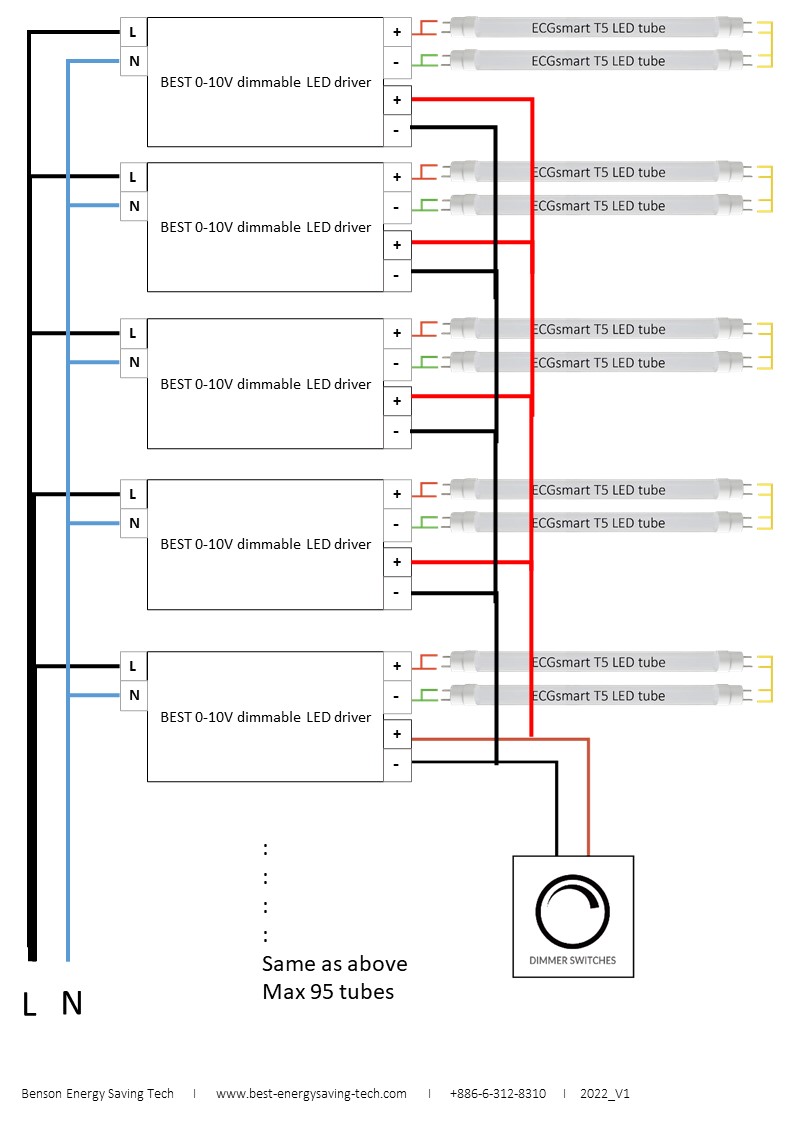

Q3. How many LED tubes can be controlled with one dimmer?

Ans. Max. 95 pcs of LED tubes.

Q4 Color Temperature?
Ans.
2700K is warmer and yellower, it is better for home, hotel, café or bar.

4000K is the popular color in European area, which is not that yellow and brighter environment but you can feel warm and comfortable.

6000K is the cold color and looks like the sun, it is better for business office or other areas that for workers to improve focus and concentration.

Q5 Do you offer luminaire?
Ans. We can offer with or without luminaire as you request.

Other suggestions:
Basically, we pack our products without wiring service! If you need this service (will be charged additionally), please highlight in your inquiry, and inform us the length of wires you need.

Need more information, or samples orders service, please contact with us directly!
