0-10V Dimmable LED drivers — the best match with T5 HO LED tube series

0-10V Dimmable LED drivers — the best match with T5 HO LED tube series

0-10V Dimmable LED drivers — the best match with T5 HO LED tube series

2022-08-30
0-10V constant current dimmable LED driver

Benson Energy Saving Technology new released 0-10V constant current dimmable LED drivers are the best match with our designed ECGsmart dimmable series T5 HO LED tubes in super high lumen output. Single LED tubes or multiple LED tubes are available to be tandem connected with one dimmable LED driver. Dimming from 0% off mode to 100% light on with any brands of dimmer switch is possible. It provides end user a flicker free and smooth dimming in good consistency experience.

We design the best match 0-10V constant current dimmable LED drivers for our T5 HO LED tubes series. It has stable current supply, high energy efficiency, high power factor over 95%, and the low Total Harmonic Distortion (THD<15%). It provides stable input current to the LED tubes, so that the LED tubes will not be overheat because of overcurrent. The overall performance can effectively extend the LED lamp lifetime!



Circular economy LED driver-
  • Manually control the brightness to easily reduce the energy consumption.
  • Best quality – more than 5 years lifetime.
  • Easy to maintain— to save more cost in maintenance.
  • Recycling – 99% materials are reusable and recycled content.


Features of T5 HO LED series 0-10V constant current dimmable LED driver
Features of T5 HO LED series 0-10V constant current dimmable LED driver
  • Design to operate with BEST’s ECGsmart dimmable T5 HO 2F/3F/4F/5F/5F2 LED tubes.
  • Support 0-10V dimming system.
  • Smooth dimming, adjust 0-100% brightness.
  • The best solution for smart building, office lighting, industry lighting.
  • Available to work with various 0-10V dimmer switch. (We can offer 0-10V dimmer switch.)
  • Flicker-free dimming, SVM<1, PstLM<0.4.
  • High power factor over 90%
  • CE, RoHS certifications
  • Over heat, over current and short circuit protection.

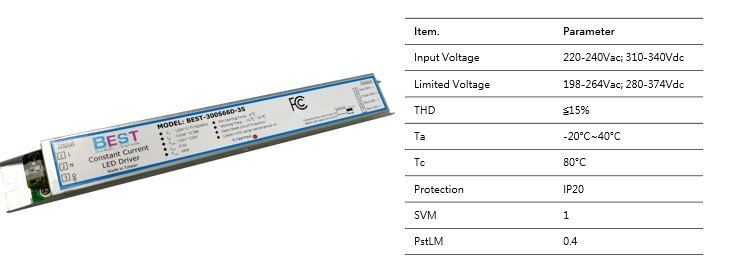

Specification of T5 HO LED series constant current dimmable LED driver
ITEM NO. Watt Output
Voltage
Output
Current
Energy
Efficiency
PF Ta Dimension
BSP-26WDA-90300FC 13-26W 45-90 250-300 88% 0.90 -20°C~40°C 270x30x13mm
BSP-50WDA-105200FC 23-46W 51-105 250-300 88% 0.90 -20°C~40°C 270x30x13mm
BSP-65WDA-145410FC 30-65W 70-145 400-450 88% 0.90 -20°C~40°C 360x30x20mm
BSP-62WDA-250300FC 30-65W 120-258 250-300 88% 0.90 -20°C~40°C 360x30x20mm
BSP-90WDA-200500FC 40-90W 80-200 450-500 88% 0.90 -20°C~40°C 360x30x20mm


The best match T5 LED tubes with dimmable LED drivers.
How many LED tubes can be connected with ONE dimmable LED driver?

We listed our 0-10V dimmable LED drivers and the best match T5 HO LED tubes as the following tables.

It clearly shows the information about T5 HO LED tubes, such as energy efficiency, length, and the numbers of LED tubes with ONE dimmable LED driver.

Customers can choose the appropriate T5 HO LED tubes according to the space evaluation and determine the quantity of T5 HO LED tubes by necessary brightness.



0-10V dimmable LED driver BSP-26WDA-90300FC
Lamp item. Quantity Watt Voltage Energy
Efficiency
Lumen Life Span CCT Length
T5 HO 2F LED 1pcs 13W 45V 140lm/W 1820 lm 50,000hr 2700K-6500K 549mm
T5 HO 2F LED 2pcs 26W 90V 140lm/W 1820 lm 50,000hr 2700K-6500K 549mm


0-10V dimmable LED driver BSP-50WDA-270200FC
Lamp item. Quantity Watt Voltage Energy
Efficiency
Lumen Life Span CCT Length
T5 HO 3F LED 1pcs 23W 51V 140lm/W 3920 lm 50,000hr 2700K-6500K 849mm
T5 HO 3F LED 2pcs 46W 102V 140lm/W 3920 lm 50,000hr 2700K-6500K 849mm


0-10V dimmable LED driver BSP-65WDA-145410FC
Lamp item. Quantity Watt Voltage Energy
Efficiency
Lumen Life Span CCT Length
T5 HO 4F LED 1pcs 32W 72V 140lm/W 4480 lm 50,000hr 2700K-6500K 1149mm
T5 HO 4F LED 2pcs 64W 144V 140lm/W 4480 lm 50,000hr 2700K-6500K 1149mm


0-10V dimmable LED driver BSP-62WDA-250300FC
Lamp item. Quantity Watt Voltage Energy
Efficiency
Lumen Life Span CCT Length
T5 HO 5F LED 1pcs 31W 129V 140lm/W 4340 lm 50,000hr 2700K-6500K 1449mm
T5 HO 5F LED 2pcs 62W 258V 140lm/W 4340 lm 50,000hr 2700K-6500K 1449mm


0-10V dimmable LED driver BSP-90WDA-200500FC
Lamp item. Quantity Watt Voltage Energy
Efficiency
Lumen Life Span CCT Length
T5 HO 5F2 LED 1pcs 44W 87V 140lm/W 6160 lm 50,000hr 2700K-6500K 1449mm
T5 HO 5F2 LED 2pcs 88W 174V 140lm/W 6160 lm 50,000hr 2700K-6500K 1449mm


Kindly contact us for more details or further questions.
Tel: +886-6-312-8310
Email: [email protected]

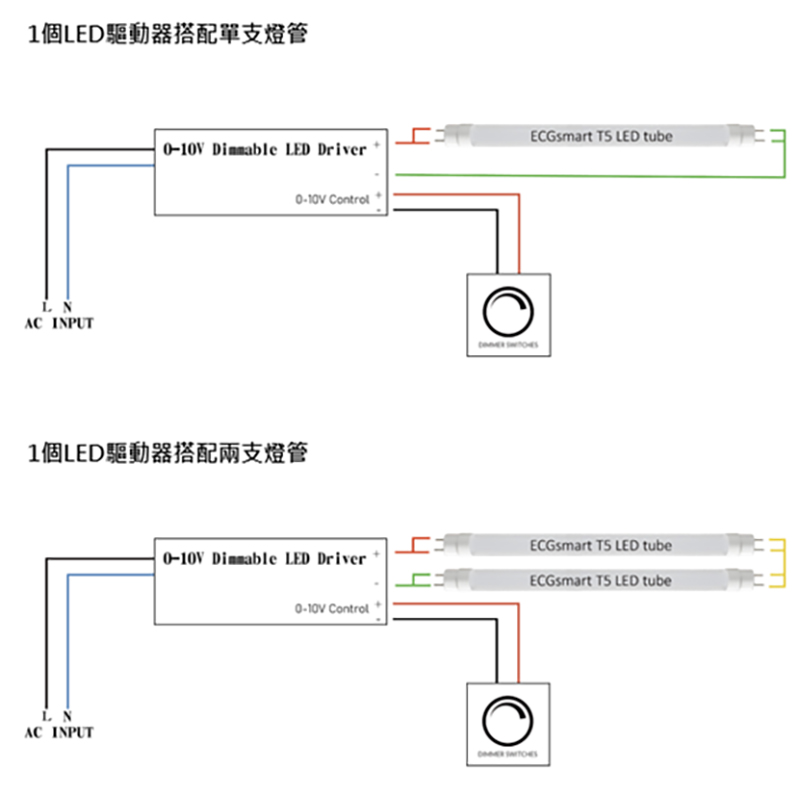

Installation instruction of 0-10V constant current dimmable LED driver
Installation instruction of 0-10V constant current dimmable LED driver
