A sustainable lighting solution -- ECGall LED series

Good bye fluorescent lights.
One of a sustainable Lighting solution – Professional ECGall LED series

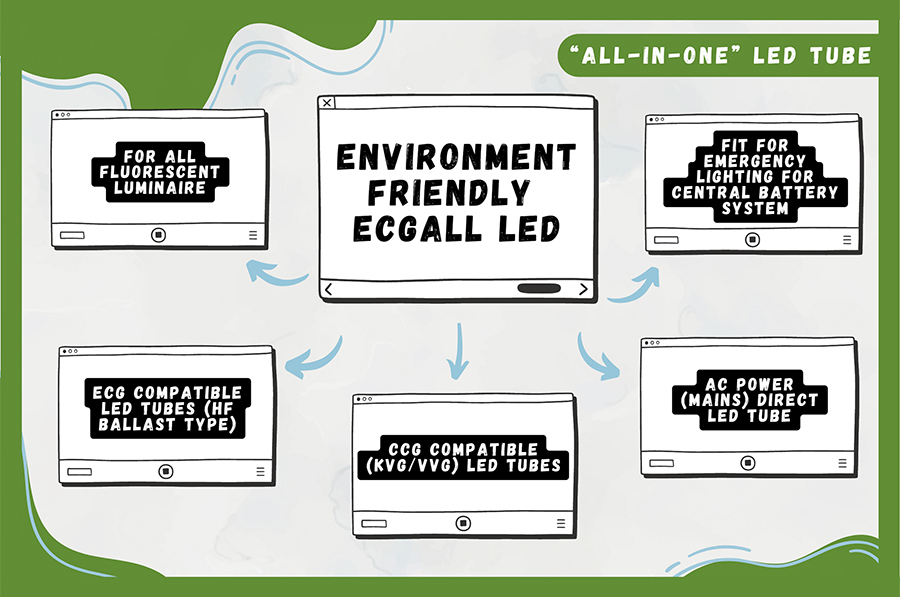

What is ECGall LED?

It is an “ALL-IN-ONE” LED tube.

What can “ECGall” LED tubes do?

Solution 1. ECG compatible (HF ballasts) LED tube.

Solution 2. CCG compatible (KVG/VVG) LED tube.

Solution 3. AC power (Mains) direct LED tube. (Without ballasts)

Why would I need ECGall LED tubes?

without needing to change the entire luminaire. You can keep the existing and well-functioning ballasts such as...

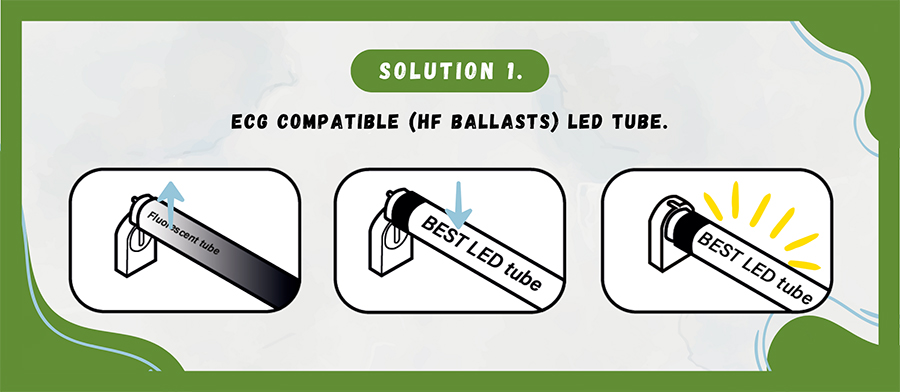

Solution 1. ECG compatible (HF/EVG ballasts) LED tube.

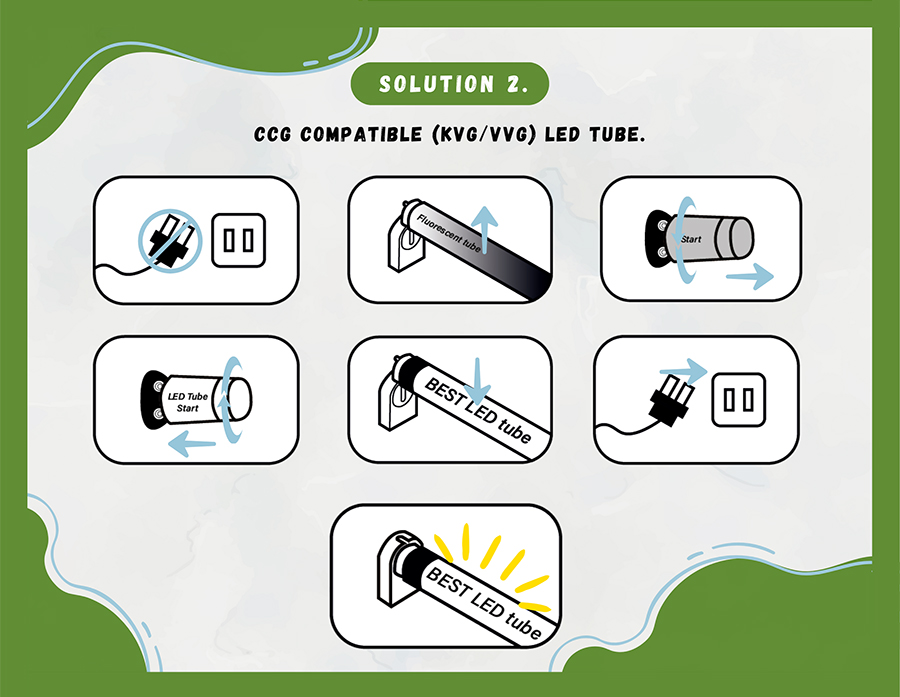

Solution 2. CCG compatible (CCG/KVG/VVG) LED tube.

If above mentioned ballasts are no longer available, and you should remove the ballasts and make the wiring directly AC power supply to LED tubes, which is considering the THIRD solution.

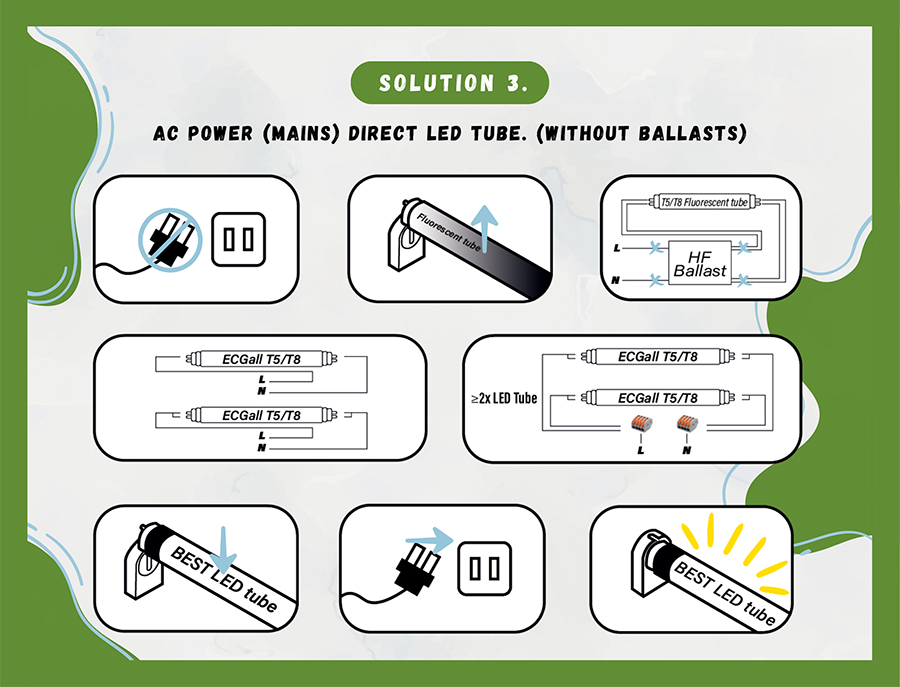

Solution 3. Without ballasts directly AC mains power supply LED tube.

That’s why we called it “All in One” Professional LED tube.

What are the Benefits of ECGall LED tubes?

• Comply with CE, RoHS regulations
• For all existing fluorescent luminaire
• Made of high-quality heat dissipated aluminum and plastic material
• Compatible with most of the non-dimmable ECG ballasts.
• Energy Saving up to 60%
• Improved lighting quality
• Lifetime: up to 50,000hrs LM80 (temperature at/between -20…+45 °C)
• Easy installation and No rewiring
• Flicker free (PstLM≤1 and SVM≤0.4)
• R9 color rendering index value >1
• Type of protection: IP20

Can your LED tubes be compatible with most of the existing HE ballasts?

Here are the most popular ballasts we have tested, and can work with our LED tubes very well.
You can download the ECG/HF ballasts compatibility list of T5 LED from the link.

【2023 T5 LED ECG compatibility list】：
T5 HE/HO 2F 、 T5 HE/HO 3F 、 T5 HE/HO 4F 、 T5 HE/HO 5F

You can download the ECG/HF ballasts compatibility list of T8 LED from the link.

【2023 T8 LED ECG compatibility list】：
T8 2F 、 T8 4F 、 T8 5F

We will update the ECG/HF ballasts compatibility lists every year.

ECGall LED lighting product family

(ECGall ALL PRODUCTS)

ECGall T8 LED , ECGall T5 LED, ECGall 2G11 LED, ECGall 2G10 LED , ECGall GX24 LED , ECGall G24 LED

Please contact us for more products information and further details.
