TRIAC Dimming LED Driver – Problem Solved and Future Possibilities

The LED power Supply Manufacturer – Benson Energy Saving Technology

What is the TRIAC dimmer issue in the market?

LED lamps are not compatible with incandescent dimmers, even some LED lamps are marked as compatible with incandescent dimmers. There are many unpleasant experiences founded such as reduced dimming range, flickering of the lamp and so on.

The characteristics of LEDs are different from traditional incandescent lamps, and required electronic components to control current and voltage. Therefore, the industry is offering solutions for the technical problems, and most of the LED power supply manufacturers has released new technology and supply TRIAC dimming LED Driver to work between TRIAC dimmers to control the dimming performance to be smooth and stepless ₍₁.

However, we found that the weird dimming issues working with the TRIAC dimming LED drivers cannot be well solved at low dim range and still not stable enough. The undesirable dimming results can still be found now in most of the TRIAC dimmers system. BEST R&D team takes this challenge and develop our new designed TRIAC LED power supply (drivers) to solve the TRIAC dimming problems.

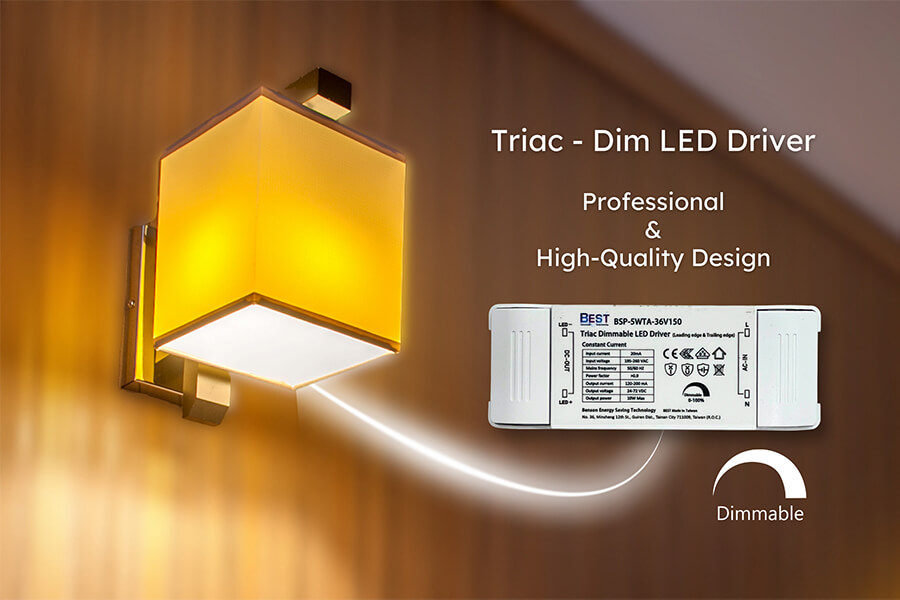

BEST NEW RELEASED “TRIAC-DIM LED DRIVER” FOR NOW AND FUTURE

Professional & High-Quality Design – The most pleasant dimming performance you have ever experiences.

Product features:

• Dimmable on leading edge (TRIAC) and trailing edge (ELV).
• Full dimming ranges from 0 to 100%.
• Smooth & Stepless dimming design.
• Compatible with system dimmers.
• Compatible with various LED light sources.
• Safety Protections: Short Circuit, Over current, Over voltage, Over temperature.
• Suitable for indoor lighting applications.
• Easy installation.
• Available working with BEST TRIAC LIGHT MODULATOR. (Coming soon)

Electrical Data:

Nominal input voltage	195-260V AC
Mains frequency	50/60 Hz
Input current	@220V Full load 20mA
Total harmonic distortion	<15 %
Power factor	@Full load >0.9
Nominal output voltage	24V-72V DC
Nominal output current	120-200mA
Dimming Method	TRIAC: leading edge & EVL
Dimming Range	0-100% Dimming to Off
Nominal output power	5W
Max output power	10W

Dimension & Weight

Overall length	109.63mm
Width	41.00mm
Height	26.32mm
Weight	65g

• • Dimmable on leading edge (TRIAC) and trailing edge (ELV)

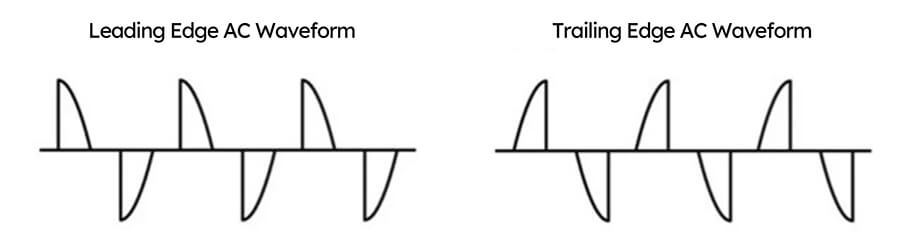

  BEST TRIAC-Dim LED driver can be used in both leading edge and trailing edge dimming ways. Leading edge dimming is so called TRIAC dimming, and the trailing edge dimming is so called electronic dimming (ELV). Here is the image showing the AC waveform changes between leading edge and trailing edge.

• Full dimming ranges from 0 to 100%. Smooth & Stepless dimming design.

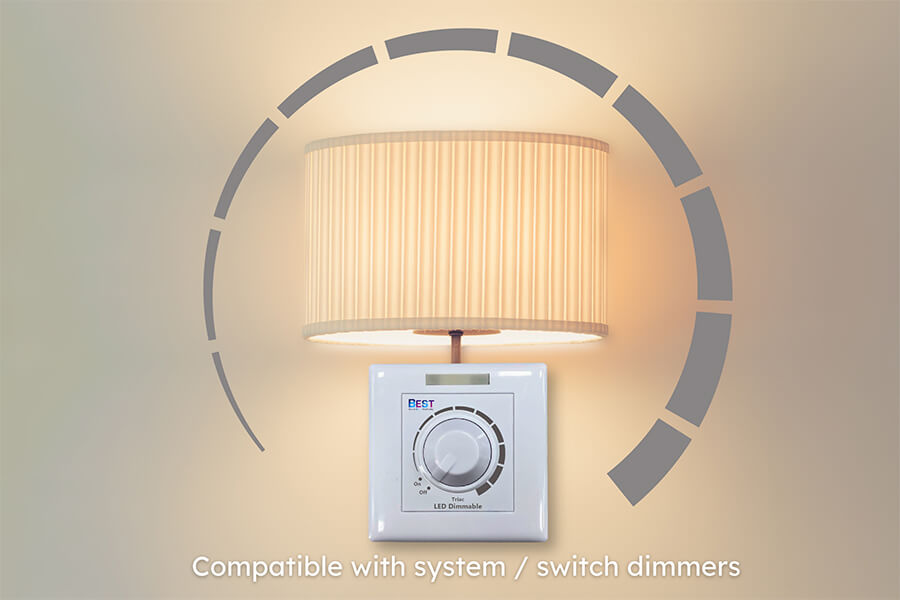

• Compatible with system dimmers
  BEST TRIAC-Dim LED driver has wide dimming range from 0-100%. It is compatible with LED TRIAC system dimmer switch or by using our designed BEST TRIAC digital dimming wall switch(2 and our TRIAC-dim LED driver as a set, the dimming ranges can be more precisely, and you can feel the dimming performance is smooth, stepless and comfortable without flickering even at low dim range.

(2 BEST TRIAC digital dimming wall switch v1

• Compatible with various LED light sources and applications

TRIAC-Dim LED driver Family	Compatible LED light sources & applications	Connecting numbers
BSP-5WTA-36V150	ECGsmart T5 short series ECGsmart G24q / GX24q series SW G24d / GX24d series SW G23 series ECGsmart 2G7 series DC MR16 series ... more	1pcs
40W	ECGsmart T5 HE/HO series ECGsmart T8 series ECGsmart 2G11 series ECGsmart 2G10 series ... more	1 or 2 pcs
More and More coming soon	Spot light / Downlight  ... more	1pcs

You would be able to find those compatible LED light sources on our website:
https://www.best-energysaving-tech.com/en/products.html

For datasheet or questions, please fill out our on-line contact form:
https://www.best-energysaving-tech.com/en/contact.html

We are able to offer OEM or ODM service. Please fill out our on-line OEM form:
https://www.best-energysaving-tech.com/en/oem.html For further discussion, please send us email: [email protected]
