Innovative Eco-Design LED Lighting Solutions – The SD Surface Downlights series

Innovative Eco-Design LED Lighting Solutions – The SD Surface Downlights series

Innovative Eco-Design LED Lighting Solutions – The SD Surface Downlights series

2024-02-15

Benson Energy Saving Technology promotes The SD innovative downlights series, enabling plug and play interoperability and supporting circular economy.

The SD Series provide the easiest selection that a vendor can independently replace the toolless LED COB light source modules in different performances and features.

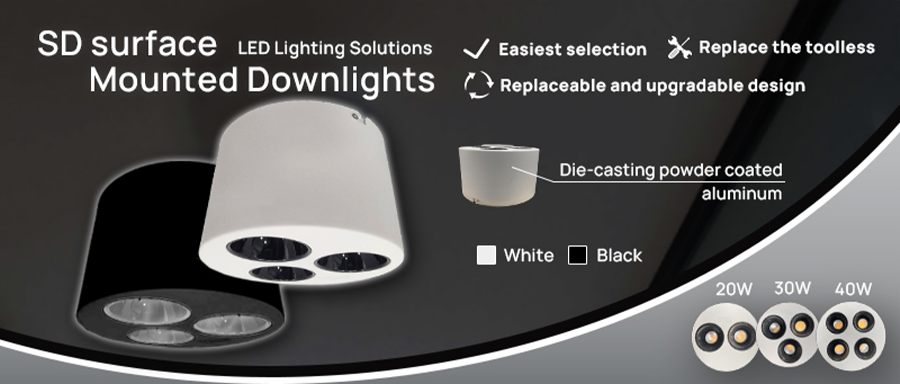

SD surface Mounted Downlights

These innovative modern downlights are in white and black painting color, and have sizes of 170mm, 185mm, and 219mm diameter. The toolless LED COB module is 10W, and has color reflectors in white, black, and silver. The LED COB light source modules are suitable for different sizes of SD series with beam direction adjustable feature, and connected with separate LED driver. Every part of the SD downlight series can be replaceable and upgradable, and are intended to be installed and exchanged by non-professionals and professionals easily and simply.

The modern SD surface-mounted downlights series can be perfect for any space from 20W, 30W, and 40W. This selection includes functional, decorative, and the innovative design options, and it eases the inventory pressure from the vendor with replaceable LED COB light source modules.

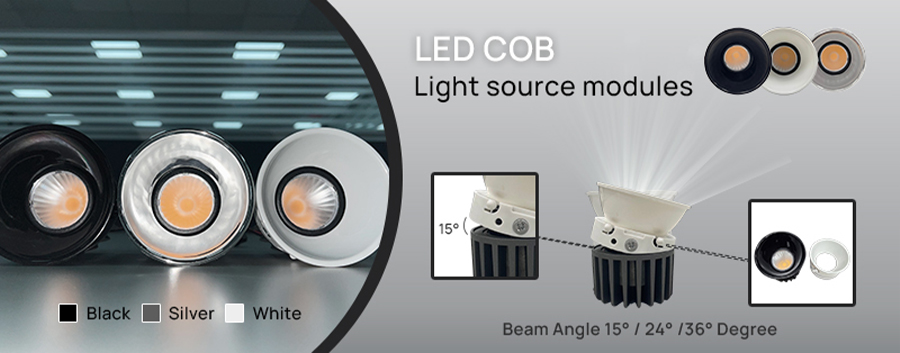

LED COB Light source modules

Product Features:
  • Replaceable and upgradable design – Innovative Eco-design LED lighting Solution
  • Replaceable toolless LED COB module
  • Designer selection modern surface-mounted downlight
  • Easy Installation by non-professionals and professionals
  • Ease the inventory pressure from the vendor
  • LED COB module is 15 degree adjustable freely
  • High Quality Heat Dissipation in aluminum lamp body

Material Specifications:

Housing: Die-casting powder coated aluminum
LED Driver: Constant voltage input, Constant Current input
Working Temperature: -20...40 ℃
Dimmable: DALI, TRIAC, PWM, 1-10V

SD Surface downlight Item Code Size (mm) Wattage Lumen (lm) Color
AC-100-240VAC, 50/60 Hz
SD17-10X2 D170xH120 20W 2400 White, Black
SD19-10X3 D185xH120 30W 3600 White, Black
SD22-10X4 D219xH120 40W 4800 White, Black


LED COB Module Code Wattage Lumen (lm) CCT Color of reflectors
Ra >80, Beam Angle 15° / 24° / 36° Degree
DL065-10B-27K-AL 10W 1000 2700K White, Black, Silver
DL065-10B-30K-AL 10W 1000 3000K White, Black, Silver
DL065-10B-40K-AL 10W 1200 4000K White, Black, Silver
DL065-10B-50K-AL 10W 1200 5000K White, Black, Silver
DL065-10B-60K-AL 10W 1200 6000K White, Black, Silver
DL065-10B-65K-AL 10W 1200 6500K White, Black, Silver
