Benson Energy Saving Technology

Yellow LED retrofit fluorescent lights with the feature of filtering below 500 nm wavelength

Yellow LED retrofit fluorescent lights with the feature of  filtering below 500 nm wavelength

Yellow LED retrofit fluorescent lights with the feature of filtering below 500 nm wavelength

2024-04-02

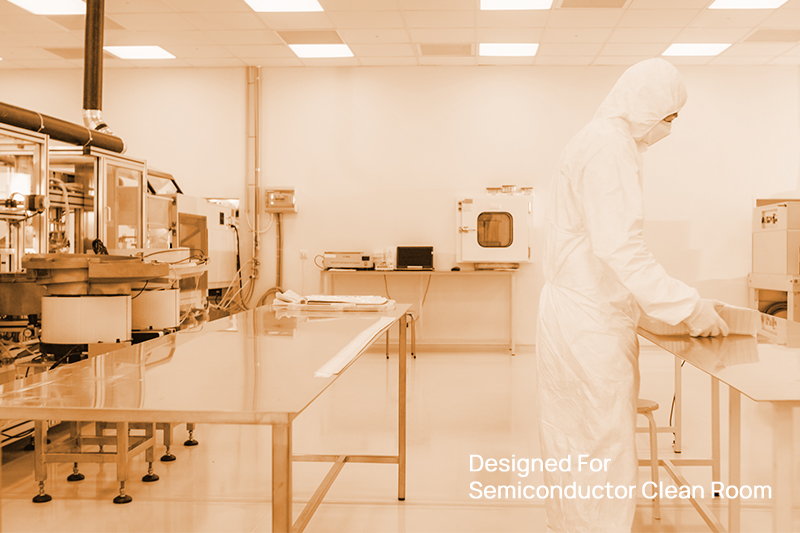

Benson Energy Saving Technology is engaged in the manufacturing of sustainable lighting, including T5 LED, T8 LED, 2G11 LED, etc. Due to technological advancements, there is a growing demand for specialized yellow LED tubes; therefore, BEST provide the retrofit led solution. The special yellow LED tube can be converted from fluorescent to LED without the need for complicated installation and wiring. The cut-off below 500nm LED lamps is applied to a wide applications, including lithography, fabrication of printed circuit boards, and UV-sensitive components, museums, and libraries, which are UV-sensitive areas.


As evident, the left-hand side of the spectrum is nearly devoid. Our clean room LED tube filters out wavelengths under 500nm, effectively blocking purple and blue lights. In the chip manufacturing process, the photoresists are significantly influenced by wavelengths ranging from 200 to 500 nm, with detrimental effects on their quality. Consequently, special yellow LED lamps play a crucial role in ensuring the production of high-quality products across various industries

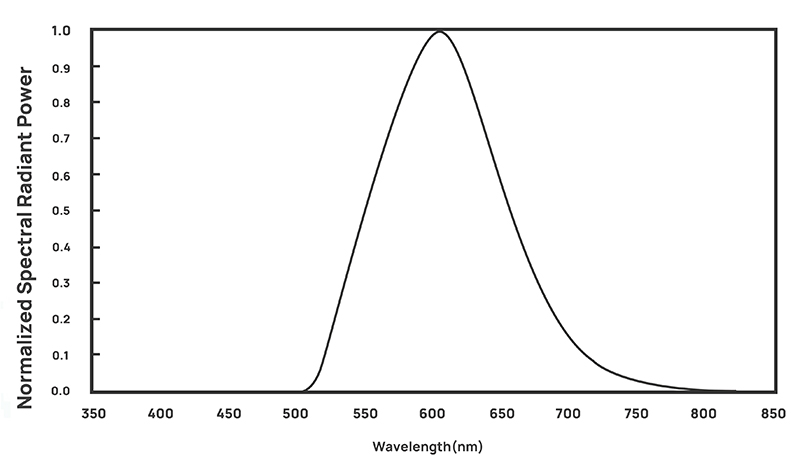

Normalized Spectral Radiant Power-filters out wavelengths under 500nm

What are the benefits of our cut-off below 500nm T5, T8 and 2G11 led?

Eco-friendly awareness progressively rises and fluorescent lamps are phasing out due to EU regulation. LED lights have replaced the majority of fluorescent tubes and become mainstream. The primary advantage of the special yellow LED T5, T8, and 2G11 is to cut off wavelengths below 500nm constantly without degradation. Meanwhile, its filter effect for below 500nm wavelength is better than fluorescent lamps. Based on eco-design, our sustainable lighting is made of plastic and aluminium, with the features of high heat resistance and great heat dissipation. As you know, efficiency and long lifespan are strongly associated with profits and yield, especially in a clean room setting. We have a variety of retrofit led solutions, including special yellow T8 LED, T5 LED, and 2G11 LED.

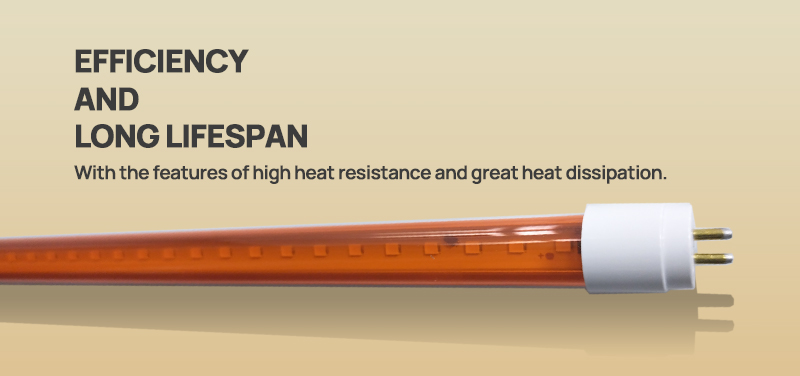

With the features of high heat resistance and great heat dissipation

How do you convert from fluorescent to LED?

We have engaged in retrofitting LED for more than 10 years. There are three series of sustainable lighting to help you find the earliest and best fit for your needs. Firstly, our SW series LED lamps operate directly with AC supply power ranging from 100-277V. Secondly, the ECGall series LED lamps are compatible with electronic control gear (ECG/EVG), conventional control gear(CCG) and AC power. Finally, our top recommendation is the ECGsmart series. Our ES T5 LED, T8 LED, and 2G11 LED are available to work on the ECG/EVG, maximising the value of LED retrofit for fluorescent light. Additionally, we offer a sustainable conversion kit with our ES cut-off below 500nm LED tube and LED driver. The standout feature is the extended lifespan (>100,000 hours) achieved through our well-designed LED driver, reducing maintenance and replacement costs. For instance, in clean room applications, where replacing LED lamps can be challenging and complex; therefore, the extended lifespan is the way to reduce the various expenditures.

How to find suitable luminaires?

If your clean room luminaires for fluorescent lamps are too outdated to operate, we can provide a wide range of luminaires for replacement, with CE and RoHS certifications. Therefore, you are not concerned about certification while replacing the entire outdated lighting set.

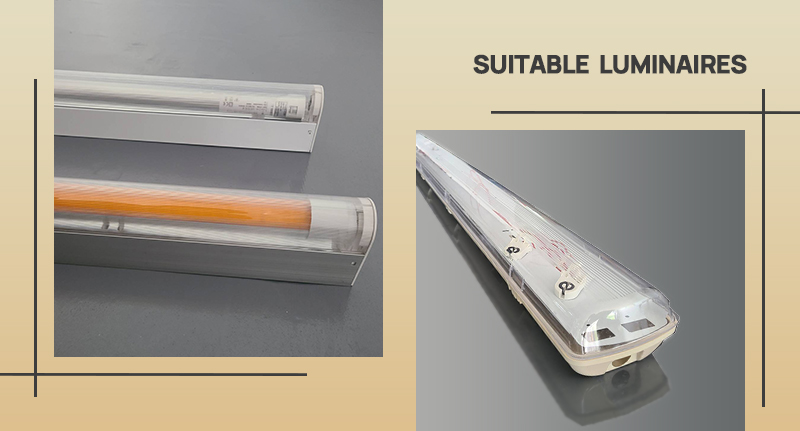

suitable  luminaires


  1. 1.Teardrop surface mounted

This is an individual luminaire made of an aluminium body and plastic cover, with a teardrop design. Installation is quite accessible, and these are mounted on the top surface. The 2-foot or 4-foot T8 LED tubes could be used in luminaires.

  1. 2.IP65 Tri-proof LED Ceiling Lamp

The key feature is one-piece moulding made of PC materials, with dust and waterproof components. It is easily mounted on the surface, and two 4-foot T8 LED tubes can work at the same time. In addition, higher IP ratings indicate better protection against dust and moisture. In clean rooms, especially those in the food industry, IP-rated LED tubes may be preferred to prevent contamination.

We provide a wide range of retrofit led solutions. Welcome luminaire manufacturers, lamp designers, interior designers, project engineers, and others who are looking for high-quality retrofit led. Contact us for more business cooperation.
