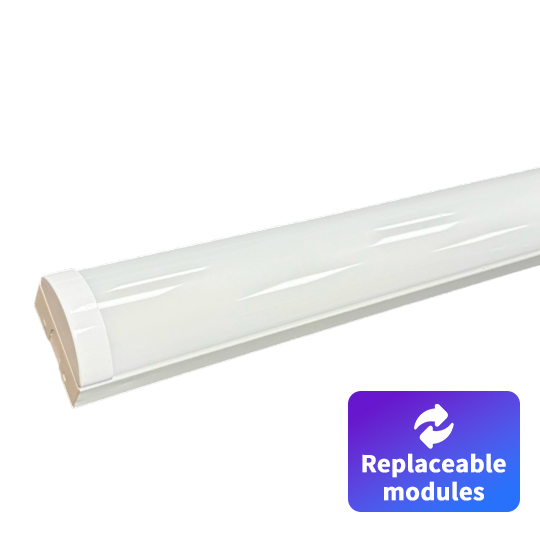

2FT 16W LED Batten CombiMod linear Light AC 100-277V
Luminaire, Linear Luminaire
2FT 16W LED Batten CombiMod linear Light AC 100-277V
Product Model: BE-LL80-16W
2FT 16W LED Batten CombiMod linear Light AC 100-277V
Directly replace a Twin T8 18W/20W fluorescent batten type luminaire
Add Inquiry
Directly replace a Twin T8 18W/20W fluorescent batten type luminaire
Features
Product Benefits

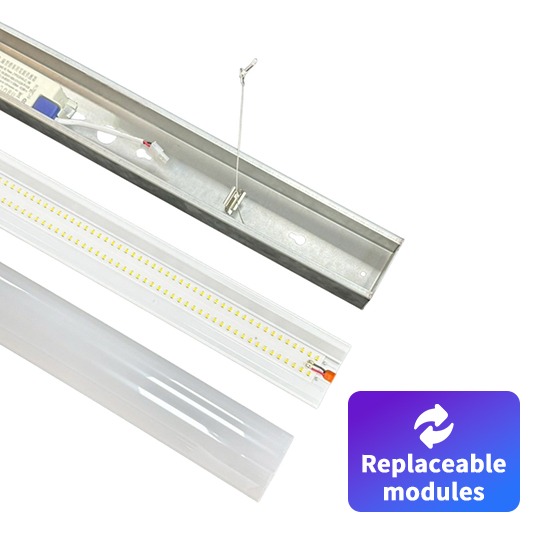

- Easily Installation & Maintenance with all replaceable modules.
- Energy-Efficient Lighting:
- Ultra-high luminous efficiency of 160 LM/W, bright and energy-efficient.
- Even Light distribution:
- Industrial high quality structural design and the LED Batten CombiMod provide a wide light-emitting surface and uniform, clear light.
- Best for 24/7 operation areas
- • Compatible with 2 x 18W/20W 2ft T8 fluorescent tube lamp
- CE RoHs standards compliant
Product features
- High Luminous efficacy: up to 160lm/W
- UL94 V-2 certified plastic, ensuring reduced flammability and improved safety.
- Long lifespan of over 50,000 hours, and an ultra-long 3-year warranty.
- Push wire terminal for tool-free connection
- Ambient temperature in operation: -40…+35 °C
- Lifetime (L70/B50)
Areas of application
- Direct replacement for fluorescent luminaires
- Corridors
- Stairwells
- Underground floors
- Warehouses
- Public areas and Common areas
- Indoor applications
Technical Data
| Description | Value |
| Model No. | BE-LL80-16W |
| CCT | 3000K / 4000K / 5000K / 6000K |
| Nominal Wattage | 16W |
| Lumen output | 2560lm |
| LED chips | SMD2835 |
| Material | Steel + PC |
| PC Cover | Milky UL94 V-2 |
| Steel | 0.5MM thickness SPCC |
| Surface Treatment | White Powder Coating |
| Lifetime (hrs) | >50,000 |
| Switching Cycle | >25,000 |
| Operating Frequency | 50/60 Hz |
| Nominal voltage | 100-240VAC |
| LED driver | CV LED Driver |
| Lumen efficacy (options) | 160lm/W |
| Power Factor | >0.9 |
| R9 | >1 |
| CRI | >80 |
| SDCM | <5 |
| Color Temperature | 3000K/5000K/6000K |
| Rated beam angle | 180.00 degree |
| Dimming | No / Upgradable |
| Warranty | 3 years |
Product Size
| Length Model No. | L (mm) | W (mm) | H (mm) | Retrofit old FL |
| BE-LL80-10W | 632 | 80 | 50 | T8 18W/20W FL*1pcs |
| BE-LL80-16W | 632 | 80 | 50 | T8 18W/20W FL* 2pcs |
| BE-LL80-25W | 1250 | 80 | 50 | T8 36W/38W/40W FL*1pc |
| BE-LL80-32.5W | 1250 | 80 | 50 | T8 36W/38W/40W FL*2pcs |
| BE-LL80-50W | 1250 | 80 | 50 | T8 36W/38W/40W FL*2pcs |
