The LED power Supply Manufacturer – Benson Energy Saving Technology

What differences are we outstanding in this market?

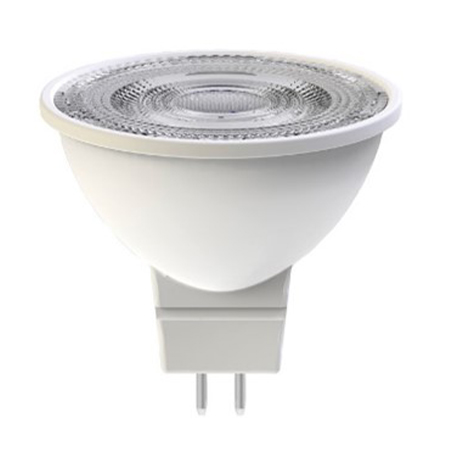

  BEST LED MR16 Spot Light Brand A MR16 Spot Light
Photo BEST LED MR16 Spot Light Brand A MR16 Spot Light
Features
  • Completed set
  • Using high quality Bridgelux chips (COB)
  • Stable and Quality approved
  • Smooth & Stepless TRIAC-Dim in a complete set
  • Dimmable
  • Able to work with various external LED driver
  • Weird TRIAC-dim performance
  • Not quality approved
Wattage 5W 7W
Dimmable Yes Yes
Lumen 650lm 630lm
Luminous Efficacy Up to 130 lm/W 90 lm/W
Lifespan 100,000 hours 40,000 hours
Switching Cycle 50,000 20,000
CRI Ra90 Ra>80


High-quality Bridgelux chip (COB)

BEST MR16 LED consists of a high-quality Bridgelux chip (COB). COB technology allows for a higher packing density of LED chips on the same substrate, leading to more uniform light distribution. Its reliability and consistency can provide you with a decent experience. In terms of CRI, the Bridgelux chips (COB) can accurately render colours, making them suitable for applications where colour accuracy is crucial, such as in retail or art galleries.

bridgelux. LED

ECO-DESIGN

BEST is involved in eco-friendly and sustainable products so the lifespan of our MR16 reaches a peak of 100,000 hours. Following the sustainability development, BEST MR16 LED are made by body full of aluminium housing and the ventilation holes surrounding to have better heat dissipation and it is good for aerodynamics to distribute enough wind flow to cool down the temperature of the light source.

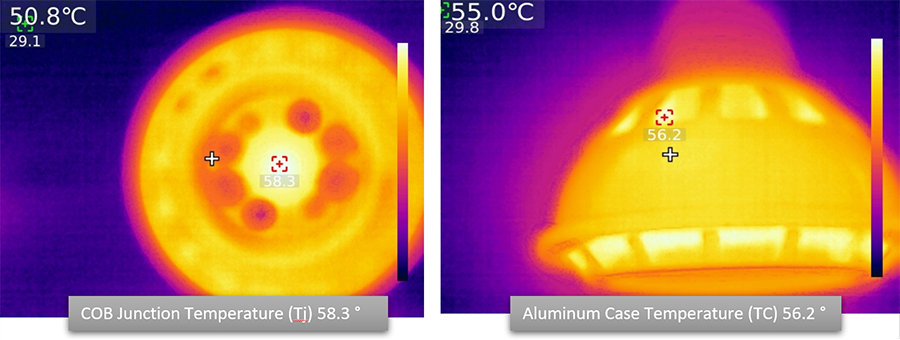

COB Junction Temperature (Tj) 58.3° v.s. Aluminum Case Temperature (TC) 56.2°

Please see the pictures generated by thermal imager. The temperatures between the COB junction and the aluminium case are almost the same. It means the heat dissipation is excellent. The overall operating temperature is about 60°C, and it can effectively extend the entire lifetime better than other brands.

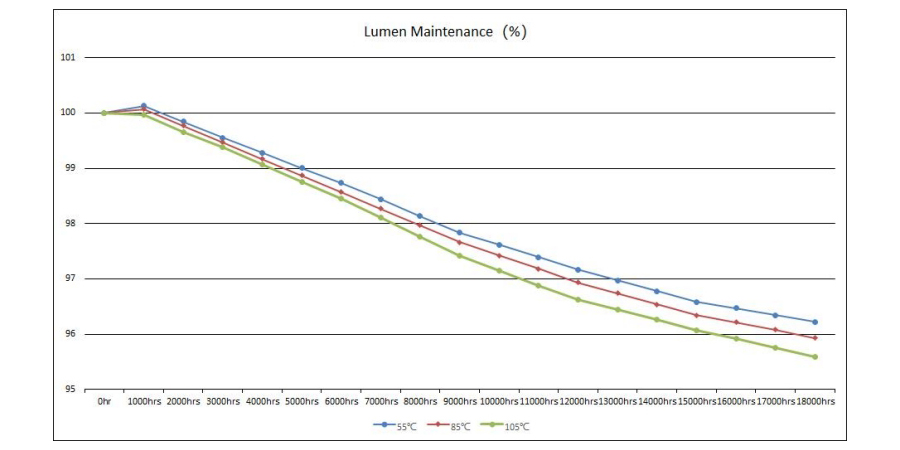

LM-80 Test Report, lumen maintenance (%)

LM-80 Test Report, lumen maintenance (%)


TRIAC-DIM REVOLUTION

There are a lot of MR16 LED in the markets, and there are a lot of manufacturers making the TRIAC dimming LED drivers. However, they are not compatible while working as a completed set. The weird dimming issues such as flickering, very low dim range, unstable dimming performance can be found nowadays.

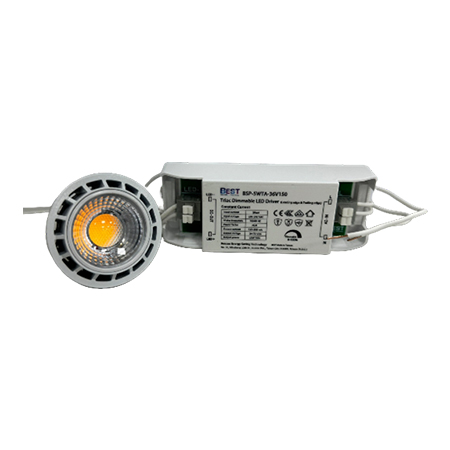

We design our MR16 LED and the TRIAC-DIM driver as a complete set. BEST MR16 LED is dimmable with our new designed TRIAC-DIM LED driver, with smooth and stepless dimming performance and a flicker-free design. You will feel the most comfortable and pleasant dimming experience.

For more details about TRIAC Driver, please check here:
TRIAC Dimming LED Driver – Problem Solved and Future Possibilities


Mass Production, OEM & ODM Welcome

Our LED MR16 can be customized based on colour temperature, beam angles etc. These could be satisfied significantly with customer demands, and we would be able to offer the best quality and delivery in very short time.

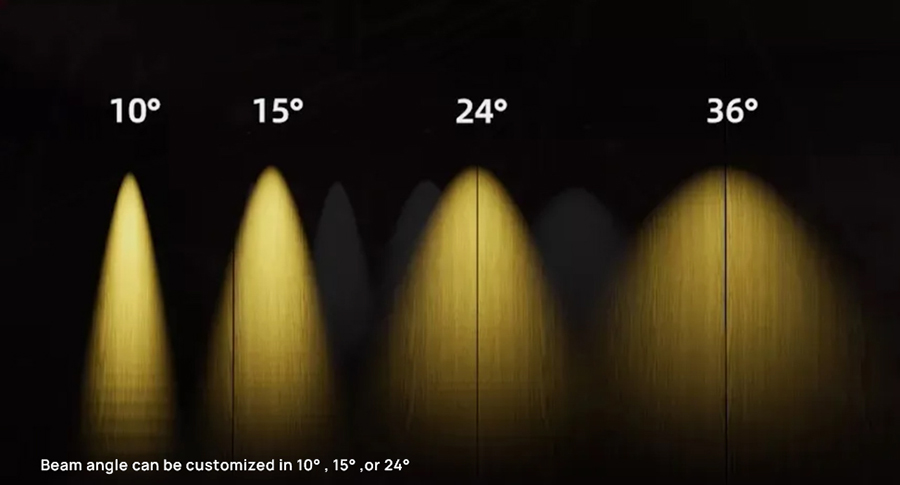

Bean angle can be customized in 10°, 15°, or 24°

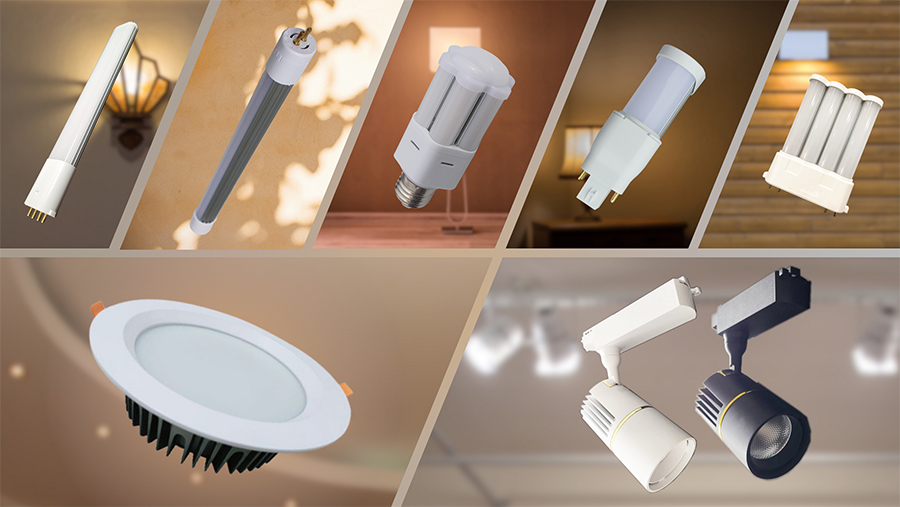

Others light sources available in TRIAC-DIM…
Others light sources available in TRIAC-DIM…

Welcome luminaire manufacturers, lamp designers, interior designers, project engineers, and others who are looking for high quality dimming performance. Contact us for more business cooperation.
