Features

• Top-Level Safety Protection：Provides stable, safe, and top-tier lighting solutions for high-risk and wet locations. Enclosure protection rating up to IP67 / NEMA 6.
• Global Explosion-Proof Passport：Simultaneously holds internationally recognized explosion-proof certifications, including IECEx (International), ATEX (EU), UL (North America), TS (Taiwan), and CML (Japan), ensuring compliance and safety.
• Taiwan Local Excellence：100% researched, designed, and manufactured in Taiwan, from a top-tier factory certified to QAN / QAR standards with dual ISO certification.
• Cost-Effective Maintenance：Replaceable T8 LED tubes eliminate the traditional pain point of having to scrap the entire fixture when a tube fails, significantly extending the overall service life of the fixture and reducing maintenance costs.

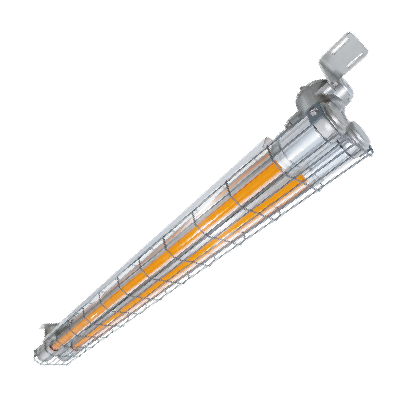

• Semiconductor Yellow Light Protection：Provides dedicated T8 LED yellow light specifications for cleanroom exposure applications, precisely filtering wavelengths below 500nm, fully protecting photosensitive materials in wafer and panel manufacturing processes.
• Ultimate Comfort and High Efficiency：Tubes feature a flicker-free design with a luminous efficacy of ≧ 100 lm/W, and a half-aluminum-plastic material for optimal heat dissipation.
• Robust Protection, Flexible Installation：Standard equipped with a reflector and metal guard; supports ceiling, wall-mount, and conduit pendant mounting brackets to flexibly adapt to various harsh industrial environments.
• Single and Double Tube, Choose as Needed：Offers single-tube and double-tube configurations for flexible planning based on space and lighting requirements, providing the most suitable industrial lighting solution.

Applicable Location

IECEx Explosion-Proof Classification

UL Explosion-Proof Classification

Specification

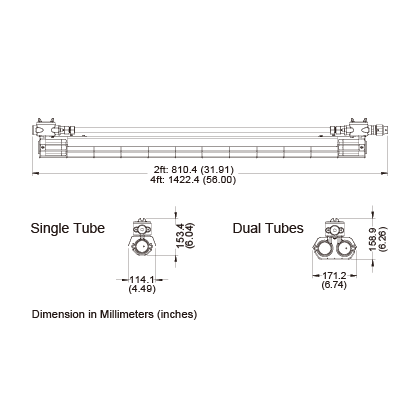

Dimension Specifications: (actual dimensions take precedence)

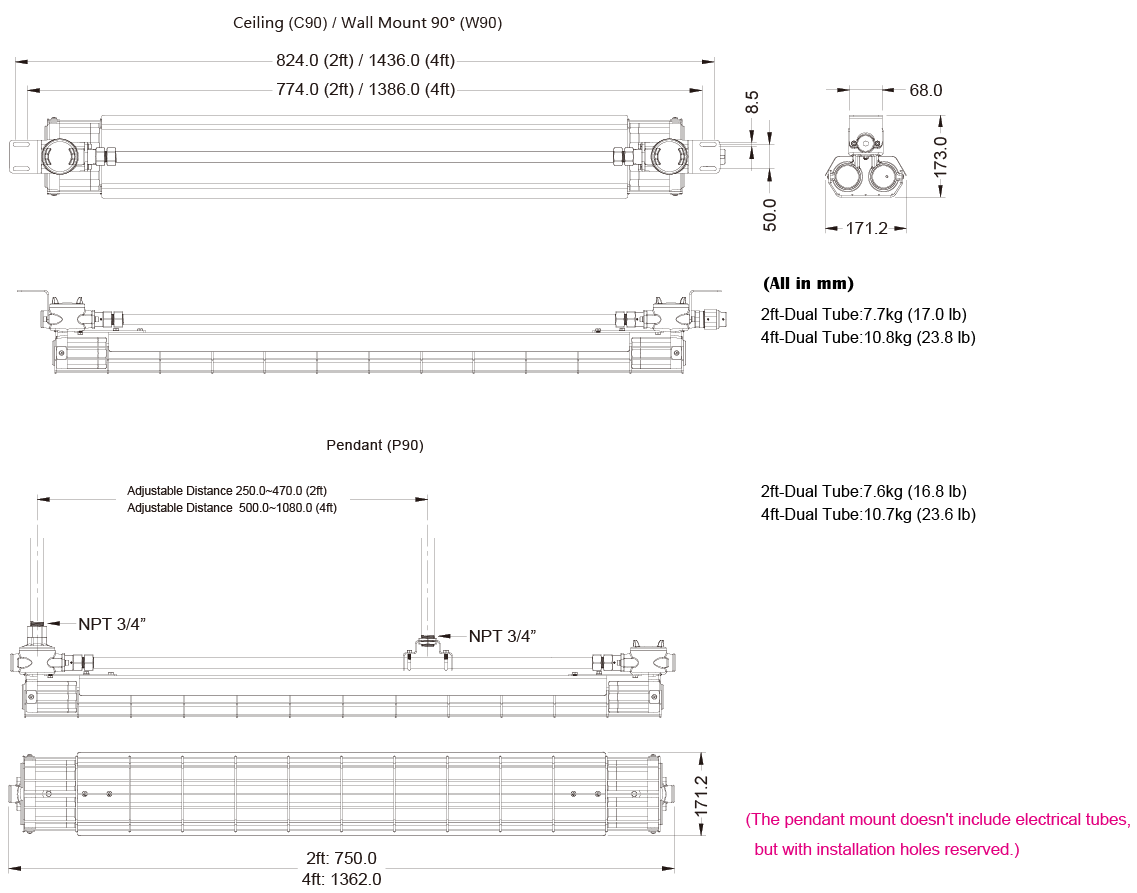

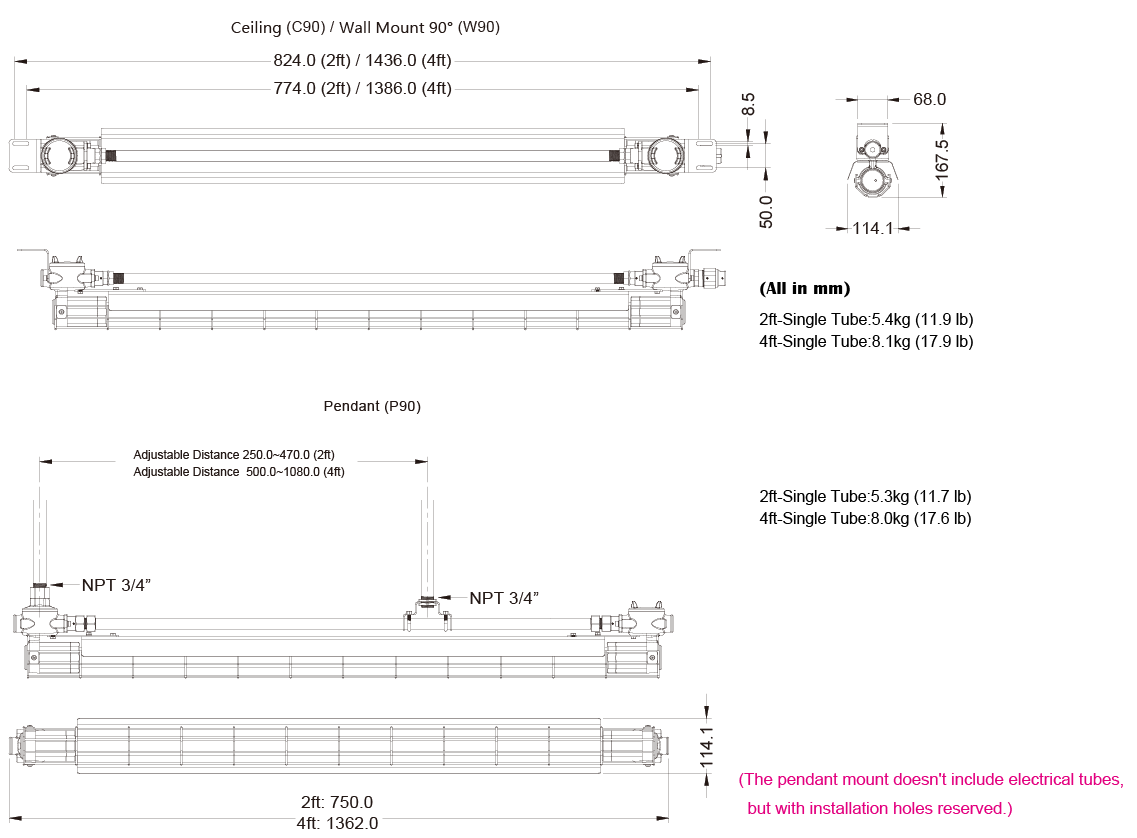

Mounting Option & Dimensions

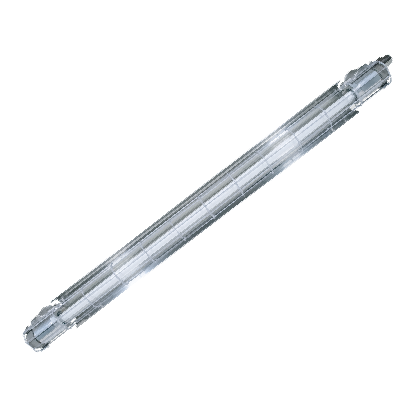

Single Tube

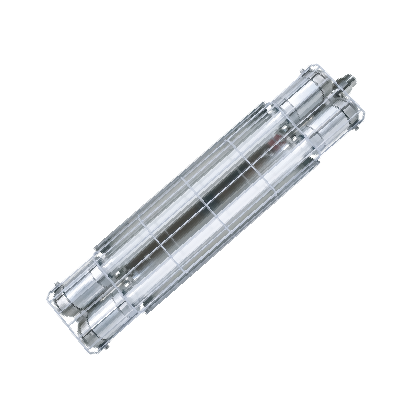

Dual Tubes

Protections

L2101 Explosion-Proof Tube Light	Certification
3000K/ 4000K/ 5700K/ 6500K Single 2ft: 6.5W* / 9W / 10W Single 4ft: 13W* / 18W / 20W Double 2ft: 13W* / 18W / 20W Double 4ft: 26W* / 36W / 40W Microwave Sensor / White 6500K Single 2ft: 8W*, Single 4ft: 15W* Double 2ft: 16W*, Double 4ft: 30W* 100-277VAC		UL Certification North America UL844-Class I, Division 1 (Group C, D) Class II, Division 1(Group E, F, G) UL1598
		IECEx Certification I.E.C Ex db IIB+H2 T6 Gb Ex tb IIIC T80°C Db Zone1 & Zone 2, Zone 21 &Zone 22
		ATEX Certification Europe II 2 D Ex db IIB+H2 T6 Gb II 2 G Ex tb IIIC T80°C Db Zone1 & Zone 2, Zone 21 &Zone 22
		TS Certification Taiwan Ex db IIB+H2 T6 Gb Ex tb IIIC T80°C Db Zone1 & Zone 2, Zone 21 &Zone 22
Cleanroom Dedicated Yellow Light 2100K Single 2ft: 9W / 10W Single 4ft: 18W / 20W Double 2ft: 18W / 20W Double 4ft: 36W / 40W 100V-277V		UL Certification North America UL844-Class I, Division 1 (Group C, D) Class II, Division 1 (Group E, F, G) UL1598
		IECEx Certification I.E.C Ex db IIB+H2 T6 Gb Ex tb IIIC T80°C Db Zone1 & Zone 2, Zone 21 &Zone 22
		ATEX Certification Europe II 2 D Ex db IIB+H2 T6 Gb II 2 G Ex tb IIIC T80°C Db Zone1 & Zone 2, Zone 21 &Zone 22
		TS Certification Taiwan Ex db IIB+H2 T6 Gb Ex tb IIIC T80°C Db Zone1 & Zone 2, Zone 21 &Zone 22

*Remark: Special Wattage is not included in the ATEX and UL certification

L2101 Explosion-Proof Tube Light — Replacement LED Tubes

Datasheet Download
