HazLoc LED Light, Explosion-proof Lighting

THT-EX L2106 Universal Explosion-proof LED Lighting

Product Model: L2106

Certified by IECEx, ATEX, and UL, these MIT LED explosion-proof tube lights provide top-tier IP67/NEMA 6 protections for maximum safety in hazardous environments. Featuring replaceable T8 LED tubes, they offer a high-efficiency and reliable lighting solution tailored for demanding industrial and cleanroom application.

Add Inquiry

Features

Top Safety Protection：Engineered to provide stable and secure top lighting solutions for hazardous and wet locations. The enclosure boasts a high protection rating of IP67 / NEMA 6.
Passport to Global Markets: Simultaneously certified by authoritative domestic and international explosion-proof standards, including international IECEx, European Union ATEX, North American UL, and Taiwan TS, ensuring compliant and guaranteed safety.
Excellence Engineered in Taiwan: 100% researched, designed, and manufactured in Taiwan, originating from a premier factory that complies with QAN / QAR standards and holds dual ISO certifications.
Cost-Effective Maintenance: Features replaceable T8 LED tubes, solving the pain point of traditional explosion-proof lights where the entire fixture must be discarded upon damage. This significantly extends the overall lifespan of the luminaire and saves corporate maintenance costs.
Semiconductor Yellow Light Solution: Offers a T8 LED yellow light specification dedicated to cleanroom exposure processes. It precisely filters wavelengths below 500nm, providing comprehensive protection for photosensitive materials in wafer and panel manufacturing.
Comfort and Peak Efficiency: Experience a new standard in industrial lighting with our flicker-free design, delivering an impressive luminous efficacy of 100 lm/W or higher. The tubes, featuring a semi-aluminum and plastic construction, achieve superior heat dissipation performance.
Flexible Configuration and Multiple Mounting: Dedicated reflectors or metal protective guards can be selected based on the actual requirements of the work area. It also supports multiple mounting brackets, including ceiling, wall, and pendant mounting, flexibly adapting to various harsh industrial environments.

Applicable Location

Zone 1, Zone 2, Zone 21, Zone 22
Class I, Division 1 (Group C, D)
Class II, Division 1 (Group E, F, G)

IECEx Explosion Protection Level

Explosion Protection Marking：Ex
Gas explosion protection classification：nR
Dust explosion protection classification：Db
Hazardous gas classification：IIC
Hazardous dust classification：IIIC
Gas temperature classification：T6
Dust temperature classification：T85℃
Explosive gas atmospheres：Gc
Explosive dust atmospheres：Db
Degree of Protection：IP67/NEMA6

UL Explosion Protection Level

Explosion Protection Marking：Process Control Equipment For Hazardous Locations
Gas explosion protection classification：Class I, Division 2, Group A, B, C, D
Gas temperature classification：T6
Explosive gas atmospheres：Division 2
Degree of Protection：CID2 /IP67 /NEMA6

Specification

Descriptions	Value
Voltage	100V ~ 277V AC
Wattage	2ft-18W / 4ft-36W 2ft: 20W / 4ft: 40W (only for yellow light)
Amps	18W-0.06A~0.18A 20W-0.07A~0.20A 36W-0.13A~0.36A 40W-0.14A~0.40A
Efficacy	≧ 100lm/W
Color Temperature	Warm White (3000K) / Natural White (4000K) / Daylight (5700K) / Cool White (6500K) / Yellow (20W&40W)
Ambient Temperature	-20°C ~ +40°C, T6
Material	Aluminum alloy enclosure + PC lighting tube
Lifespan	> 50,000 hrs
Mounting option	Ceiling mount, wall mount, pendant mount

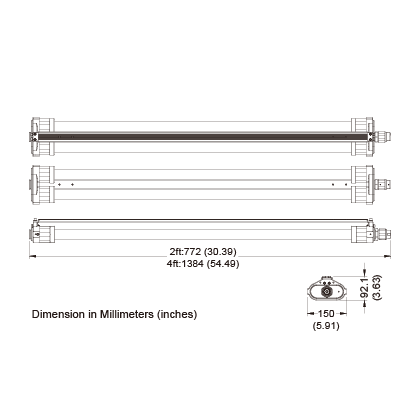

Dimensions and Specifications: (Actual product applies)

Item No.	Wattage	Luminaire size	Lumen

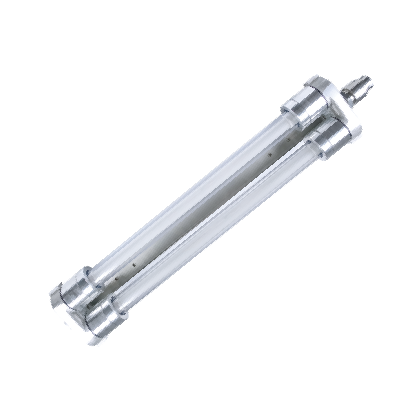

Dual T8 2F	18W	L772W150H92.1mm	2520
Dual T8 4F	36W	L1384W150H92.1mm	5040
Dual T8 2F Yellow tube- Cleanroom	20W	L772W150H92.1mm	2000
Dual T8 4F Yellow tube- Cleanroom	40W	L1384W150H92.1mm	4000

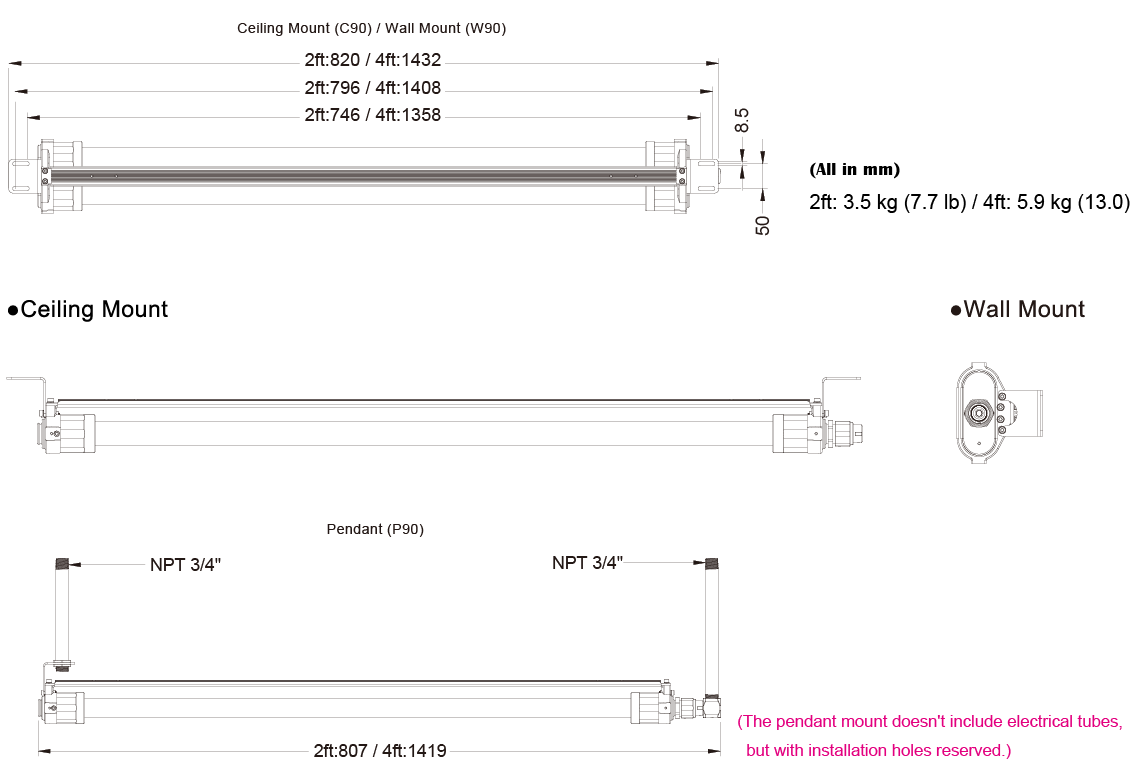

Mounting Option & Dimensions

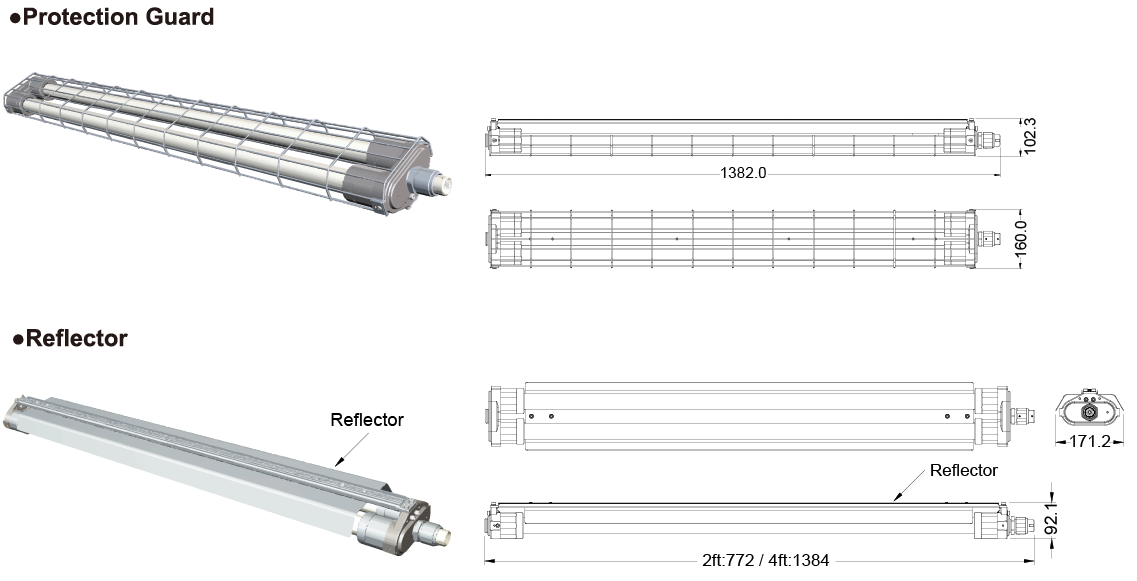

Optional Accessory

Protections

L2106 Explosion-proof LED Lighting	Certification
2ft: 18W / 4ft: 36W 3000K/ 4000K/ 5000K/ 6500K 100V-277V		UL Certification North America UL844 - Class I, Division 2 (Groups A, B, C and D) UL1598
		IECEx Certification I.E.C Ex nR IIC T6 Gc Ex tb IIIC T85°C Db Zone 2, Zone 21, Zone 22
		ATEX Certification Europe Ex nR IIC T6 Gc Ex tb IIIC T85°C Db Zone 2, Zone 21, Zone 22
		TS Certification Taiwan Ex nR IIC T6 Gc Ex tb IIIC T85°C Db Zone 2, Zone 21, Zone 22

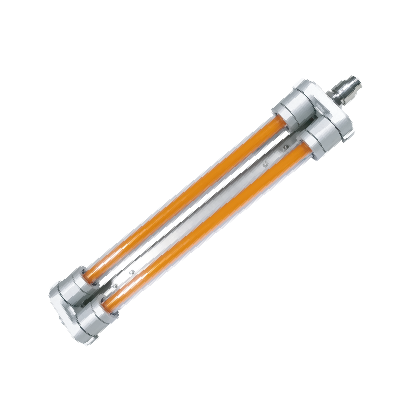

2100K Exposure Light 2ft: 20W / 4ft: 40W 100V-277V		IECEx Certification I.E.C Ex nR IIC T6 Gc Ex tb IIIC T85°C Db Zone 2, Zone 21, Zone 22
		ATEX Certification Europe Ex nR IIC T6 Gc Ex tb IIIC T85°C Db Zone 2, Zone 21, Zone 22
		TS Certification Taiwan Ex nR IIC T6 Gc Ex tb IIIC T85°C Db Zone 2, Zone 21, Zone 22

Exclusive LED Retrofit Tube for L2106 Explosion-Proof Light

Exclusive T8 LED Retrofit Tube for L2106 Explosion-Proof Light
Benson Energy Saving Technology T8 LED 2F LED tube	Professional industrial lighting T8 LED，mains voltage (100V ~ 277V) compatibility Long lifespan, over 50,000 hours life time Semi-aluminum and plastic construction, achieve superior heat dissipation performance. Flicker-free design	BEST T8 LED Tube Full Size Series Suitable for Other Light Fittings)
Benson Energy Saving Technology T8 LED 4F LED tube

Exclusive yellow LED Retrofit Tube for L2106 Explosion-Proof Exposure Light
Benson Energy Saving Technology T8 2F CRL LED Specialist yellow LED light tubes	Effectively block all photoresist sensitive wavelengths from 0 ~ 500 nanometers. Suitable for areas where photosensitive materials are stored, including IC semiconductor fabrication plants, LCD panel factories, R&D laboratories, and cleanrooms. Long lifespan, over 50,000 hours life time Semi-aluminum and plastic construction, achieve superior heat dissipation performance. Flicker-free design	BEST T8 CRL LED Tube Full Size Series (Suitable for Other Light Fittings)
Benson Energy Saving Technology T8 4F CRL LED Specialist yellow LED light tubes

Datasheet Download
