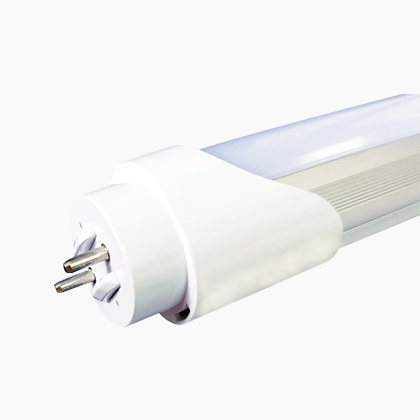

AC mains T8 4F 18W LED tube

T8 LED, 1200 mm Replacement T8 LED

AC mains T8 4F 18W LED tube

產品型號: AC-IN T8 4F LED tube

The 4 feet T8 18W LED Tube is the perfect replacement for the existing fluorescent T8 tubes. High quality built-in LED driver. Long life time. High lumen output. Double ended input design. LED tubes deliver longer life than conventional fluorescent lamps. Directly connect with AC mains ...
加入詢問
產品特色

The 4 feet T8 18W LED Tube is the perfect replacement for the existing fluorescent T8 tubes. High quality built-in LED driver. Long life time. High lumen output. Double ended input design. LED tubes deliver longer life than conventional fluorescent lamps. Directly connect with AC mains voltage ( 100V ~ 240V) for LED luminaire or old fixtures whose ballast is bypassed. Excellent and efficient alternatives to 1200mm T8 36W fluorescent offered by other lighting manufacturers, such as Philips, Sylvania, Osram and GE.

(Model: AC-IN T8 4F LED tube)
Replacement for conventional T8 1200mm fluorescent tube
Work with mains voltage (100V ~ 240V)
Non-integrated with double ended input
Over current and over temp protection
Constant lumen with excellent lumen maintenance
Over 30,000 hour life time
High Color rendering index Ra ≥ 82
CCT available: 2700K ~ 6500K
Ultra-low discoloration of light over life of tube
No bending with good quality Aluminum housing.
No mercury or hazardous materials
Also suitable for operation at low temperature
Re-using the existing fixture without major modifications when needed
Note: Not applicable to AC mains voltage with single ended input fixture ( L and N wire at the same side of LED tube)

My company has accumulated lots of LED technology, so we are able to help customers to design and develop customized products to their unique specifications. We provide LED solutions of AC main voltage input T8 LED tubes with high performance and excellent quality. The LED T8 tubes are assembled with SMD 2835 LED chips which are optimized for distributed lighting.

LED tubes come with high quality build-in LED driver and can be efficient alternatives to fluorescent T8 lamps. Specifically designed for operation with AC main voltage input (90V – 265V). The end cap of T8 fittings are available for rotating and lockable options. The installation of LED lamps can be much safer and simpler. Our T8 LED tubes are available in various length, from 600mm, 900mm, 1200mm to 1500mm with different wattage.

Welcome to visit our website or contact with our lighting specialist by email to know more about our T8 (G13) LED lighting solutions

規格表
Descriptions Value
Direct Replacement Target fluorescent T8 36W/38W/40W traditional tube
Compatibility mains voltage ( 100V ~ 240V)
direct DC power supply (141-338V)
Driving Voltage 100V ~ 240V
DC power supply: 141-338V
Wattage 18W
Conventional Wattage Equivalent 36W
Life Span (Hours) 30000 hours
Lumens per Watt 150 lm/W
Lumens 2700 lm
Diameter 26mm
Length 1200 mm ( 4 feet long)
Color Rendering Index (CRI) Ra > 82
Beam Angle (Degrees) 180
Color Temperature (CCT) 2700K ~ 6500K
Base Cap G13
End cap type Aluminum or plastic
Rotatable end cap Available upon request
PC cover Clear / frosted
規格表
Order number DirecT/E RetrofiT/E Target
SW-T84F-27K-AL Old 1200mm T8 2700K Fluorescent tube
SW-T84F-30K-AL Old 1200mm T8 3000K Fluorescent tube
SW-T84F-40K-AL Old 1200mm T8 4000K Fluorescent tube
SW-T84F-50K-AL Old 1200mm T8 5000K Fluorescent tube
SW-T84F-60K-AL Old 1200mm T8 6000K Fluorescent tube
SW-T84F-65K-AL Old 1200mm T8 6500K Fluorescent tube
