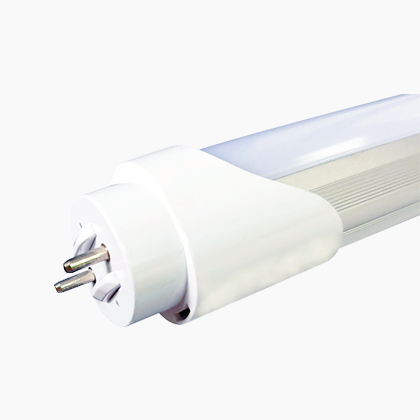

產品型號: AC-IN T8 3F LED tube
High quality built-in LED driver. Long life time. High lumen output. Double ended input design. LED tubes deliver longer life than conventional fluorescent lamps. Directly connect with AC mains voltage (100V ~ 240V) for LED luminaire or old fixtures whose ballast is bypassed.
Excellent and efficient alternatives to 900mm T8 30W fluorescent offered by other lighting manufacturers, such as Philips, Sylvania, Osram and GE.
(Model: AC-IN T8 3F LED tube)
Work with double end input mains voltage (100V ~ 240V)
Replacement for conventional T8 900mm fluorescent tube
Over current and over temp protection
Over 30,000 hour life time
Good Color rendering index Ra ≥ 82
CCT available: 2700K ~ 6500K
Ultra-low discoloration of light over life of tube
No bending with good quality Aluminum housing.
No mercury or hazardous materials
Also suitable for operation at low temperature
Re-using the existing fixture without major modifications when needed
Note: Only suitable for working with AC mains voltage with double ended input fixture ( L and N mains at the different side of LED tube)
We provide LED solutions of AC main voltage input T8 LED tubes with high performance and excellent quality. The LED T8 tubes are assembled with SMD 2835 LED chips which are optimized for distributed lighting. The end cap of T8 fittings are available for rotating and lockable options. Specifically designed for operation with AC main voltage input (90V – 265V).
LED tubes come with high quality build-in LED driver and can be efficient alternatives to fluorescent T8 lamps. The installation of LED lamps can be much safer and simpler. Our T8 LED have different tube length, 600mm, 900mm, 1200mm or 1500mm with different wattage.
My company has accumulated lots of LED technology, so we are able to help customers to design and develop customized products to their unique specifications. Welcome to visit our website or contact with our lighting specialist by email to know more about our unique and excellent LED lighting solutions.
|Direct Replacement Target||T8 30W traditional fluorescent tube|
|Compatibility||mains voltage ( 100V ~ 240V)|
direct DC power supply (141-338V)
|Driving Voltage||100V ~ 240V
DC power supply: 141-338V
|Conventional Wattage Equivalent||30W|
|Life Span(Hours)||30000 hours|
|Lumens per Watt||130 lm/W|
|Color Rendering Index (CRI) Ra||>82|
|End cap type||Aluminum or plastic|
|Rotatable end cap||Available upon request|
|Order number||DirecT/E RetrofiT/E Target|
|SW-T83F-27K-AL||Old T8 900mm 2700K Fluorescent tube|
|SW-T83F-30K-AL||Old T8 900mm 3000K Fluorescent tube|
|SW-T83F-40K-AL||Old T8 900mm 4000K Fluorescent tube|
|SW-T83F-50K-AL||Old T8 900mm 5000K Fluorescent tube|
|SW-T83F-60K-AL||Old T8 900mm 6000K Fluorescent tube|
|SW-T83F-65K-AL||Old T8 900mm 6500K Fluorescent tube|
