Dimmable T8 4F 24W LED tube
Dimmable T8 4F 24W LED tube

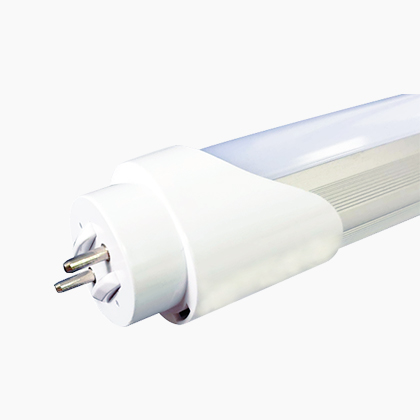

Product Model: ECGsmart T8 4F LED tube
Replace old T8 4F 36W CFL, DLS (Directional light source), NMLS (Non-Mains light source), CE, RoHS certification, Ready for NEW ErP Directives, PF>0.95.
Features
Work with DALI/ 0-10V/ TRIAC dimmable LED driver. Directly replace old T8 1200mm 36W fluorescent lamp. Plug & Play installation. High Frequency (HF) ballast Compatible. No fixture rewiring. No ballast bypassing. No liquid capacitor inside to ensure the best performance and guarantee longer lifetime. No flickering or stroboscopic light.
(Model: ECGsmart T8 4F LED tube)
Directly replace old T8 1200mm 36W/38W/40W fluorescent tube
Work with electronic ballast in existing luminaire
Suitable for most of DALI dimming ECG ballast
Trusted safety with double end fuse protection at each end.
No discoloration of light over life of tube
40,000 hour life time
15,000 switching cycles
Color rendering index Ra ≥ 82
No mercury or hazardous materials
No bending with high quality aluminum housing
Instant 100% light.
No flickering or stroboscopic light.
Made of shatter-proof plastic
Note: Not applicable to line voltage input (85V~265V). Only suitable for working with electronic ballasts, constant current LED driver or dimmable LED driver.
We are a professional T8 LED lighting manufacturer, factory, and supplier in Taiwan. If you are looking for retrofit LED lighting, we are the factory and exporter to offer best quality and service.
Product special features
．Safety:
- Fuse protection. Over current /temperature protection
- Electric arc/ Spark prevention
．Reliability:
- No built- in LED driver
- No liquid capacitors and inductors on PCB
- 50,000 hours rated lifespan(L70); 25,000 switching cycles.
．Compatibility:
- Perfectly compatible with rapid & preheat & instant start electronic ballast
- Function with non- dimmable LED driver and dimmable LED driver
- Support 1 ballast to multi- lamps(2/3/4)
．Easy Installation:
- Easy of use. Direct plug- and- play
- No need to rewire the fixture or bypass ballast
- Reduce maintenance and installation cost
．Energy- saving
- Work with Electronic Ballast Without increasing the power consumption
Specifications
| Descriptions | Value |
| Direct Replacement Target | Old 1200mm T8 36W/38W/40W Fluorescent tube |
| Driver Compatibility | Electronic ballast, LED driver |
| Ballast Driving Voltage | Upon ballast output |
| CC LED Driver Output Voltage | 54V DC |
| CC LED Driver Output Current | 300mA DC |
| Wattage | 24W |
| Conventional Wattage Equivalent | 30W |
| Base Cap | G13 |
| Life Span(Hours) | 50000 hours |
| Beam Angle(Degrees) | 140 |
| Lumens per Watt | 140 lm/W |
| Lumens | 3360 lm |
| Dimeter | 28mm |
| Length | 1200mm(4 feet) |
| Color Rendering Index (CRI) Ra | >82 |
| Color Temperature(CCT) | 2700K~6500K |
| End cap type | Aluminum or plastic |
| PC cover | Clear/Milky |
