Benson Energy Saving Technology

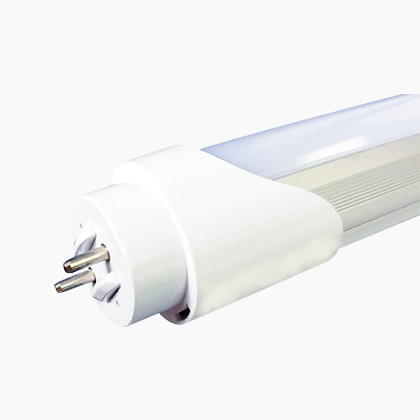

LED replacement T8 58W tube

T8 LED, 1500 mm Direct T8 LED

LED replacement T8 58W tube

Product Model: ECGall T8 5F LED tube

All-in-one compatibility for electronic ballast, magnetic ballast and mains power input. Function with many common electronic ballasts. Help directly replace old 5 feet T8 58W fluorescent tube. No ballast bypassing. No fixture rewiring. Just plug & play with safety, simplicity and ease. Reduced ...
Add Inquiry
Features

All-in-one compatibility for electronic ballast, magnetic ballast and mains power input. Function with many common electronic ballasts. Help directly replace old 5 feet T8 58W fluorescent tube. No ballast bypassing. No fixture rewiring. Just plug & play with safety, simplicity and ease. Reduced operational cost thanks to lower energy consumption than conventional lamps.

(Model: ECGall T8 5F LED tube)
Compatible with Electronic Control Gear (ECG)
Compatible with Magnetic ballast
Compatible with Mains voltage (100V ~ 240V)
Directly replace conventional T8 1500mm fluorescent tube
Perfectly compatible with rapid & preheat & instant start electronic ballast
Help upgrade existing luminaires to LED technology with ease
Over 30,000 hours life time
Good Color rendering index Ra ≥ 82
No discoloration of light over life of tube
Mercury-free and RoHS compliant
Suitable for operation at low temperature
Double fuse protection at each end.
Reduce maintenance and installation cost
Made of shatter-proof plastic
No bending or warping thanks to good quality aluminum housing.
Note 1: Not Applicable to single ended input (L and N mains power at the same side)
Note 2: Only suitable for double ended power input.

It is not easy for most of users to know whether the light fittings have been rewired or not. With our all compatible LED solution, the end-users don’t have to worry about this point. The installation of LED lamps can be very safe and super easy.

ECGall T8 LED retrofit tube provide all compatible multiple functions, which can work with Electronic Control Gear (ECG or called electronic ballast), conventional control gear(CCG, or called magnetic ballast) or AC main power compatibility. This is amazing functionality. Fastest and easiest way to upgrade existing luminaires to LED technology. The installation of LED lamps can be much safer and simpler.

Different version available for ECGall series T8 LED tubes: the length of 600mm, 900mm, 1200mm or 1500mm with different corresponding wattage. The tube wattage and lumen efficacy might be customized upon requests and discussions. Welcome to visit our website or contact with our lighting specialist by email to know more about our all-in-one, or so-called universal type, solution of T8 LED tube.

Specifications
Descriptions Value
Direct Replacement Target Traditional T8 58W fluorescent tube
Compatibility HF ballast, magnetic ballast, mains input ( 100V ~ 240V)
direct DC power supply (141-338V)
Driving Voltage ECG operation: Upon ballast output
AC mains operation: 100V ~ 240V
DC power supply: 141-338V
Life Span (Hours) HF ECG operation: 50000 hours
CCG, AC mains operation: 30000 hours
Wattage 28W
Conventional Wattage Equivalent 58W
Base Cap G13
Color Rendering Index (CRI) Ra > 82
Beam Angle (Degrees) 180
Color Temperature (CCT) 2700K ~ 6500K
Lumens per Watt 150 lm/W
Lumens 4200 lm
Diameter 26mm
Length 1500 mm (5 feet)
PC cover Clear / Milky
End cap type Aluminum or plastic
Specifications
Order number Direct Retrofit Target
EA-T85F-27K-AL 1500mm fluorescent T8 58W 2700K tube
EA-T85F-30K-AL 1500mm fluorescent T8 58W 3000K tube
EA-T85F-40K-AL 1500mm fluorescent T8 58W 4000K tube
EA-T85F-50K-AL 1500mm fluorescent T8 58W 5000K tube
EA-T85F-60K-AL 1500mm fluorescent T8 58W 6000K tube
EA-T85F-65K-AL 1500mm fluorescent T8 58W 6500K tube
