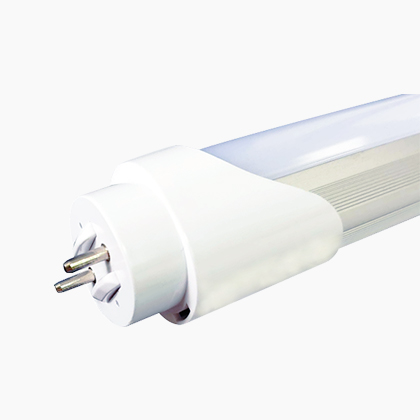

T8 1F 7W LED tube AC mains
T8 1F 7W LED tube AC mains
Product Model: AC-IN T8 1F LED tube
Features
T8 LED lights replacement for T8 1F 15W fluorescent tube.
More energy-efficiently, environmentally friendly alternatives to standard fluorescent tubes. High-quality built-in LED driver. Long lifetime. High lumen output. Double-ended input design.
(Model: AC-IN T8 1F LED tube)
Double end input mains voltage (100V ~ 277V) compatibility
Replacement for conventional T8 438mm fluorescent tube
Over current and over temp protection
Over 30,000 hour life time
Good Color rendering index Ra ≥ 82
No discoloration of light over life of tube
Mercury-free and RoHS compliant
Also suitable for operation at low temperature
No bending or warping thanks to good quality aluminum housing.
Please note: Not suitable for working with single end input mains voltage. ( L and N wires connect with the same side of LED tube)
We are a professional T8 LED lighting manufacturer and supplier in Taiwan. If you are looking for retrofit LED lighting, we are the factory and exporter to offer best quality and service.
Specifications
| Descriptions | Value |
| Direct Replacement Target直接替換 | T8 15W traditional fluorescent tube |
| Compatibility | mains voltage (100V ~ 277V), direct DC power supply (141-388V) |
| Driving Voltage | Mains operation: 100V ~ 277V DC power supply: 141-338V |
| Wattage | 7W |
| Conventional Wattage Equivalent | 15W |
| Base Cap | G13 |
| Life Span(Hours) | 30000 hours |
| Lumens per Watt | 120 lm/W |
| Lumens | 840 lm |
| Dimeter | 28mm |
| Length | 438mm |
| Color Rendering Index (CRI) Ra | >82 |
| Beam Angle(Degrees) | 140 |
| Color Temperature(CCT) | 2700K~6500K |
| End cap type | Aluminum or plastic |
| PC cover | Clear/Milky |
