Dimmable T8 2F 10W LED tube

T8 LED, T8 Dimmable LED

Dimmable T8 2F 10W LED tube

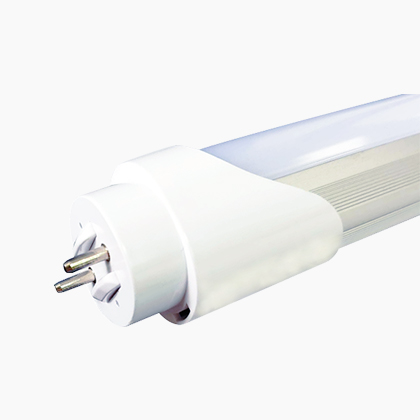

Product Model: ECGsmart T8 2F LED tube

Work with DALI/ 0-10V/ TRIAC dimmable LED driver.
Replace old T8 2F 18W FL, DLS (Directional light source), NMLS (Non-Mains light source), CE, RoHS certification, Ready for NEW ErP Directives, PF>0.95.
Add Inquiry
Features

Work with DALI/ 0-10V/ TRIAC dimmable LED driver.
Directly replace old T8 600mm 18W fluorescent lamp. Electronic ballast Compatible. No fixture rewiring. No ballast bypassing. Just safe, simple, easy plug & play installation.

(Model: ECGsmart T8 2F LED tube)
Directly replace old T8 600mm 18W fluorescent tube
Work with electronic ballast in existing luminaire.
Suitable for output current adjustable dimming ECG ballast, such as DALI dimmable
No discoloration of light over life of tube
40,000 hour life time
15,000 switching cycles
Color rendering index Ra ≥ 82
No bending with high-quality aluminum housing
No mercury or hazardous materials
Note: Not applicable to line voltage input (85V~265V). Only suitable for working with electronic ballasts and CC LED driver.

We are a professional T8 LED lighting manufacturer, factory, and supplier in Taiwan. If you are looking for retrofit LED lighting, we are the factory and exporter to offer best quality and service.

Specifications
Descriptions Value
Direct Replacement Target Old 600mm T8 18W Fluorescent tube
Driving Compatibility Electronic ballast,LED driver
Ballast Driving Voltage Upon ballast output
CC LED Driver Output Voltage 27V DC
CC LED Driver Output Current 300mA DC
Wattage 10W
Conventional Wattage Equivalent 18W
Base Cap G13
Life Span(Hours) 50000 hours
Beam Angle(Degrees) 140
Lumens per Watt 140 lm/W
Lumens 1400 lm
End cap type Aluminum or plastic
PC cover Clear/Milky
Dimeter 28mm
Length 600mm(2 feet)
Color Rendering Index (CRI) Ra >82
Color Temperature(CCT) 2700K~6500K
