4 pin G24q 10W PL LED

G24q LED, 5W G24q LED CFL

4 pin G24q 10W PL LED

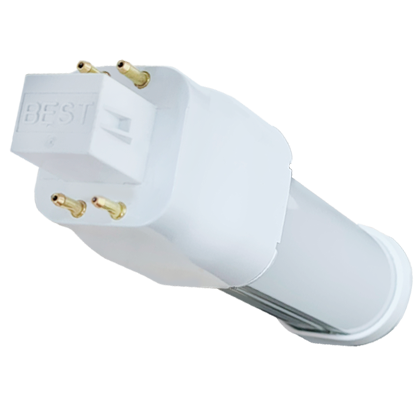

產品型號: ECGsmart G24q 5W LED lamp

Directly replace old fluorescent lamp. High Frequency(HF) ballast Compatible. No fixture rewiring. No ballast bypassing. Just simple plug & play. ...
加入詢問
產品特色

Directly replace old fluorescent lamp. High Frequency(HF) ballast Compatible. No fixture rewiring. No ballast bypassing. Just simple plug & play.

(Model: ECGsmart G24q 5W LED Lamp)
Directly replace old G24q 10W compact fluorescent lamp (CFL)
Up to 60% energy saving compared to old G24q PLC CFL
Lifespan up to 50,000 hours, reducing maintenance costs
Made of safer shatter-proof plastic
Easy upgrade from existing conventional downlight fixture.
Re-using the existing luminaire and lighting fixtures.
Instant 100% light.
No flickering or stroboscopic light.

Directly replace old fluorescent lamp. High Frequency (HF) ballast Compatible. No fixture rewiring. No ballast bypassing. Just simple plug & play.

ECGsmart G24q LED PLC is an excellent retrofit LED PLC solution which can be fitting into existing luminaire and work with electronic ballast. The lifespan is over 50,000 hours and requires less maintenance and servicing.

ECGsmart G24q/Gx24q LED series can cover direct replacement solutions from old 10W, 13W, 18W, 26W, 32W and 42W CFL. The old type G24q CFL can be GE Double Biax Series, PHILIPS MASTER PL-C, or OSRAM DULUX D/E compact fluorescent lamp.

規格表
Descriptions Value
Direct Replacement Target Old G24q 10W PLC CFL
Driver Compatibility Electronic ballast, LED driver
Ballast Driving Voltagee Upon ballast output
LED Driver Driving Voltage 24-30V DC
LED Driver Driving Current 160mA DC
Wattage 5W
Conventional Wattage Equivalent 10W
Base Cap G24q universal ( G24q-1)
Life Span(Hours) 50000 hours
Beam Angle (Degrees) 140
Lumen 650 lm
PC cover Clear/Milky
Length 120mm
Color Rendering Index (CRI) Ra >82
Color Temperature(CCT) 2700K~6500K
Lumen per Watt 130 lm/W
規格表
Order number Direct Retrofit Target
ES-G24q-5W27K-AL Old G24q 10W 2700K CFL
ES-G24q-5W30K-AL Old G24q 10W 3000K CFL
ES-G24q-5W40K-AL Old G24q 10W 4000K CFL
ES-G24q-5W50K-AL Old G24q 10W 5000K CFL
ES-G24q-5W60K-AL Old G24q 10W 6000K CFL
ES-G24q-5W65K-AL Old G24q 10W 6500K CFL
