4 pin 18W PL LED bulb

GX24q LED, 6W GX24q LED CFL

4 pin 18W PL LED bulb

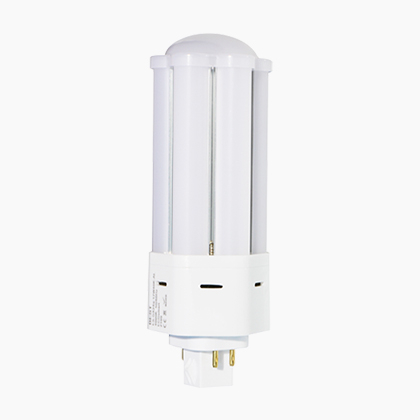

產品型號: ECGsmart GX24q 6W LED lamp

Very easy to upgrade traditional DULUX T/E or PL-T 13W CFL with ECGsmart GX24q 6W LED CFL.
Proven designs with patented technology for HF direct ballast Compatibility. No need to rewire fixture. No need to bypass ballast. ...
加入詢問
產品特色

Very easy to upgrade traditional DULUX T/E or PL-T 13W CFL with ECGsmart GX24q 6W LED CFL.
Proven designs with patented technology for HF direct ballast Compatibility. No need to rewire fixture. No need to bypass ballast.
Users can treat ECGsmart LED CFL just as traditional compact fluorescent lamps (CFL), so the replacement can be fast, easy and safe. After installing with LED CFL in existing lighting fixtures, the old HF ballast can be replaced with non-dimmable or dimmable LED driver when needed. Super compatible with electronic ballasts or LED drivers. The timing can be that old ballast is dead or users want to upgrade present luminaire with 0/1-10V or DALI dimming function.

(Model: ECGsmart GX24q 6W LED Lamp)
Great LED lamp and LED driver upgradability for the existing luminaire.
Simple plug & play replacement for 18W PL compact fluorescent lamp (CFL)
Able to work with many types of off-the-shelf 0/1-10V or DALI dimming LED driver
Up to 60% energy saving compared to old PL-T or DULUX T/E CFL
Lifespan up to 50,000 hours, reducing maintenance costs
Safer shatter-proof aluminum housing and plastic cover.
4-pin universal GX24q plastic base
Universal pin base replacing with GX24q-1, GX24q-2, GX24q-3, GX24q-4 pin base.
Flicker free and no stroboscopic.
Areas of application: offices, public buildings, shop, boutique store, supermarkets, department stores, hotels, motels, and restaurants

The lifespan is over 50,000 hours and requires less maintenance and servicing beyond expectation. ECGsmart G24q/Gx24q LED series have different types and can cover direct replacement solutions towards old 10W, 13W, 18W, 26W, 32W and all the way to 42W CFL. Whatever you need, the LED solution will be there for you.

Our customer service team or specialists will offer our experience and expertise to assist you with your project. Welcome to contact with us for more information or technical support.

規格表
Descriptions Value
Direct Replacement Target Old 4 pin GX24q 13W PL CFL
Driver Compatibility Electronic ballast,non-dimmable or dimmable LED driver
Ballast Driving Voltage Relying upon ballast output
Dimming method 0/1-10V or DALI dimming LED driver
Wattage 6W
Conventional Wattage Equivalent 13W PL
Base Cap GX24q
Life Span(Hours) 50000 hours
Beam Angle(Degrees) 360
Lumens per Watt 130 lm/W
Lumen output 780 lm
PC cover Clear/Milky
Bulb dimension 107 mm(L)*36 mm(W)
Color Rendering Index (CRI) Ra >82
Color Temperature(CCT) 2700K~6000K
規格表
Order number Direct Retrofit Target
ES-GX24q-6W27K-AL fluorescent 4 pin GX24q 13W PL-T 2700K CFL
ES-GX24q-6W30K-AL fluorescent 4 pin GX24q 13W PL-T 3000K CFL
ES-GX24q-6W40K-AL fluorescent 4 pin GX24q 13W PL-T 4000K CFL
ES-GX24q-6W50K-AL fluorescent 4 pin GX24q 13W PL-T 5000K CFL
ES-GX24q-6W60K-AL fluorescent 4 pin GX24q 13W PL-T 6000K CFL
ES-GX24q-6W65K-AL fluorescent 4 pin GX24q 13W PL-T 6500K CFL
