Universal 18W LED PLL

2G11 LED, 9W 2G11 LED Lamp

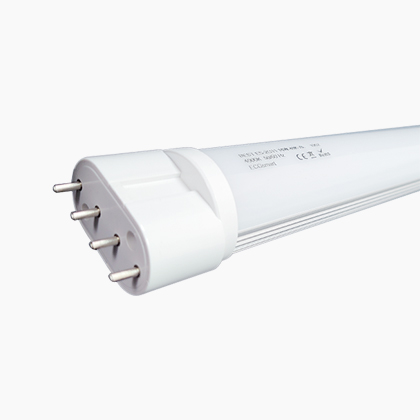

Universal 18W LED PLL

產品型號: ECGall 2G11 9W LED lamp

All in one 2G11 LED PLL solution. Electronic ballast, magnetic ballast and mains power input compatibility. Function with many common electronic ballasts. Help directly replace old 2G11 18W fluorescent tube. No ballast bypassing. No fixture rewiring. Just plug & play installation...
加入詢問
產品特色

All in one 2G11 LED PLL solution. Electronic ballast, magnetic ballast and mains power input compatibility. Function with many common electronic ballasts. Help directly replace old 2G11 18W fluorescent tube. No ballast bypassing. No fixture rewiring. Just plug & play installation.

(Model: ECGall 2G11 9W LED tube)
Electronic control Gear (ECG) compatibility.
Magnetic ballast compatibility
Mains voltage (100V ~ 240V) compatibility
Directly retrofit conventional 2G11 18W PLL compact fluorescent lamp
Re-using the existing fixture without major modifications
Over 30,000 hour life time
Better Color rendering index Ra ≥ 82
Mercury-free and RoHS compliant
No discoloration of light over life of tube
Also suitable for operation at low temperature
No bending or warping thanks to good quality aluminum housing.

ECGall 2G11 LED retrofit lamps provide all compatible multiple functions, which can work with Electronic Control Gear (ECG or called electronic ballast), conventional control gear (CCG, or called magnetic ballast) or AC main power compatibility. Some of existing 4 pin 2G11 lighting fixtures still using old PLL 18W CFL, but some luminaires are rewired into AC mains operation. It’s not easy for end users to distinguish the difference between them. With our amazing solutions, the end-users need not concern the applicability in luminaire, even though the fixtures have been rewired or ballasts have been bypassed. The installation of LED lamps can be much safer and simpler.

Our ECGall series 2G11 LED solutions can retrofit old 18W PLL, 24W PLL, 36W PLL, 40W PLL or 55WPLL. More than welcome to contact with our specialist to know more about so-called universal compatibility PLL LED lighting solutions.

規格表
Descriptions Value
Direct Replacement Target Traditional 2G11 18w PLL fluorescent lamp
Compatibility Electronic ballast, mains input  ( 100V ~ 240V)
direct DC power supply (141-338V)
Driving Voltage HF ballast operation: Upon ballast output
Mains operation: 100V ~ 240V
DC power supply: 141-338V
Wattage 9W
Conventional Wattage Equivalent 18W
Base Cap 2G11
Life Span (Hours) HF ballast operation: 50000 hours
Mains operation: 30000 hours
Lumens per Watt 150 lm/W
Lumens 1350 lm
Length 227 mm
Color Rendering Index (CRI) Ra > 82
Beam Angle (Degrees) 180
Color Temperature (CCT) 2700K ~ 6500K
End cap type Aluminum or plastic
PC cover Clear / Milky
規格表
Order number Direct Retrofit Target
EA-2G11-9W27K-AL Old 2G11 18W 2700K PLL and DULUX L CFL
EA-2G11-9W30K-AL Old 2G11 18W 3000K PLL and DULUX L CFL
EA-2G11-9W40K-AL Old 2G11 18W 4000K PLL and DULUX L CFL
EA-2G11-9W50K-AL Old 2G11 18W 5000K PLL and DULUX L CFL
EA-2G11-9W60K-AL Old 2G11 18W 6000K PLL and DULUX L CFL
EA-2G11-9W65K-AL Old 2G11 18W 6500K PLL and DULUX L CFL
