AC 4 pin PLS 5W cfl LED

2G7 LED, 3W 2G7 LED Cfl

AC 4 pin PLS 5W cfl LED

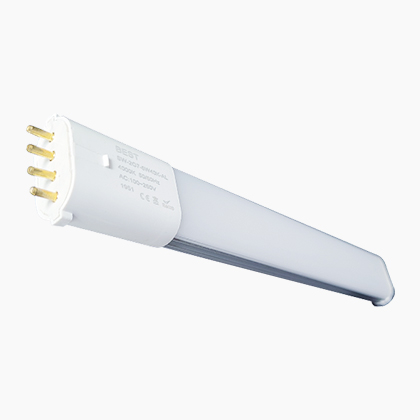

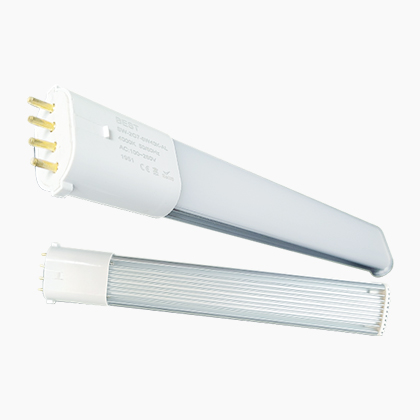

產品型號: AC-IN 2G7 3W LED Lamp

Mains voltage plug-in 2G7 PLS LED replacements are an established range of products. These lamps come in 4 pin 2G7 base. Use lower wattage LED to replace with old higher wattage CFL as taken out. These lamps are highly efficient and offer a range of ...
加入詢問
產品特色

Mains voltage plug-in 2G7 PLS LED replacements are an established range of products. These lamps come in 4 pin 2G7 base. Use lower wattage LED to replace with old higher wattage CFL as taken out. These lamps are highly efficient and offer a range of colors. With high quality built-in LED driver, 4 pin 2G7 LED lamp solutions operate with direct AC mains. The replacement target can be PL-S (4 pin), Dulux SE (4 pin) or Biax SE (4 pin) 5W CFL. High lumen out. Trusted big brand LED chips. Good color consistency. Long service life time service. Low installation maintenance cost.

(Model: AC-IN 2G7 3W LED Lamp)
Replace old 2G7 5W PLS or DULUX S/E compact fluorescent lamp
Having better lighting feature than old CFL.
Great solution in general lighting applications
Significant energy savings
Environment-friendly.
No bending with high quality aluminum housing
No mercury or hazardous materials
Perfect for use in a variety of applications including:
    - Emergency lights
    - security lights,
    - cooker hoods
    - bollards
    - signs.
Note: not suitable for electronic control gear(ECG).

Mains voltage plug-in 2G7 PLS LED replacements are an established range of products. These lamps come in 4 pin 2G7 base. Use lower wattage LED to replace with old higher wattage CFL as taken out. These lamps are highly efficient and offer a range of colors. With high quality built-in LED driver, 4 pin 2G7 LED lamp solutions operate with direct AC mains. The replacement target can be PL-S (4 pin), Dulux SE (4 pin) or Biax SE (4 pin) 5W CFL.

The AC-IN 2G7 3W LED lamp integrates a LED light engine into a traditional form of fluorescent CFL. This product is the great LED solution in general lighting applications: it meets basic lighting requirements, having High lumen out, good color consistency, long service life time service, low installation maintenance cost. and is environment-friendly.

If you need electronic ballast compatible LED solution for instant replacement, please check out our ECGsmart series 2G7 LED bulbs. If you have any questions, more than welcome to contact with our lighting specialist to know more about our electronic ballast compatible LED solutions.

規格表
Descriptions Value
Direct Replacement Target Old 2G7 5W DULUX S/E or PLS lamp
Driver Compatibility Magnetic ballast, mains voltage
direct DC power supply (141-338V)
Ballast Driving Voltage 100V~240V
DC power supply: 141-338V
Wattage 3W
Conventional Wattage Equivalent 5W PLS or DULUX S/E CFL
Base Cap 4 pin 2G7
Life Span (Hours) 30000 hrs
Beam Angle (Degrees) 140
Lumens per Watt 130 lm/W
Lumens 420 lm
End cap type Aluminum or plastic
PC cover Clear / Milky
Length 89 mm
Color Rendering Index (CRI) Ra > 82
Color Temperature (CCT) 2700K ~ 5000K
規格表
Order number Direct Retrofit Target
SW-2G7-3W27K-AL Fluorescent 4 pin 2G7 5W 2700K DULUX S/E CFL
SW-2G7-3W30K-AL Fluorescent 4 pin 2G7 5W 3000K DULUX S/E CFL
SW-2G7-3W40K-AL Fluorescent 4 pin 2G7 5W 4000K DULUX S/E CFL
SW-2G7-3W50K-AL Fluorescent 4 pin 2G7 5W 5000K DULUX S/E CFL
