Directly connect with AC mains voltage ( 100V ~ 240V) for LED luminaire or old fixtures whose ballast is bypassed. Just simply plug & play.

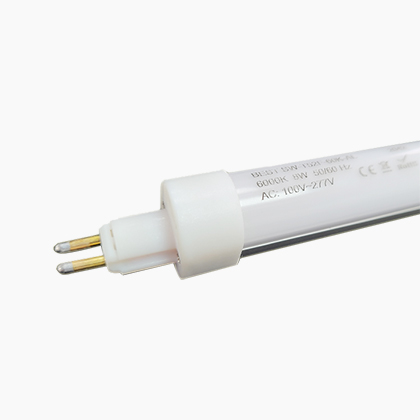

(Model: AC-in T5 HE 2F 9W LED tube)
Able to replace old OLD T5 HE 14W 549mm fluorescent tube with simple rewiring.
Compatible with mains voltage (100V ~ 240V)
Non-integrated with double ended input
No discoloration of light over life of tube
30,000 hour lifespan
Color rendering index Ra ≥ 82
No mercury or hazardous materials
No warping, no bending
Please note: Only suitable for working with AC mains voltage.
Nowadays, some of existing T5 lighting fixtures have been rewired to directly work with line voltage. Some luminaires are already designed for AC mains T5 549mm LED tubes. We are offering excellent quality AC main voltage input T5 LED tubes. The installation of LED lamps can be safe and very easy.
Our AC main voltage input T5 LED tubes are available in various lengths, designs and other related specifications. The length of AC mains T5 LED tubes are from 549mm, 849mm, 1149mm and 1449mm with its own corresponding wattage.
Every year our lighting source R&D team and lamp R&D team continuously design new products not only focus on piezoelectricity and appearance design, but also pay attention to practical application of the end user.
Welcome to contact with our lighting specialist to know more about our T5 LED tube solutions.
|Replacement Target||Old T5 HE 14W Fluorescent tube|
|Compatibility||Line voltage (100V ~ 240V), direct DC power supply (141-338V)|
|Conventional Wattage Equivalent||14W|
|Base Cap||Mini bi pin G5|
|Life Span (Hours)||30000 hrs|
|Beam Angle (Degrees)||140|
|End cap material||Aluminum or plastic|
|Rotatable end cap||Available upon request|
|PC cover||Clear / Milky|
|Color Rendering Index (CRI) Ra||> 82|
|Color Temperature (CCT)||2700K ~ 6500K|
|Lumens per Watt||130 lm/W|
|Order number||Direct Retrofit Target|
|SW-T5HE2F-27K-AL||Old T5 HE 14W 2700K Fluorescent tube|
|SW-T5HE2F-30K-AL||Old T5 HE 14W 3000K Fluorescent tube|
|SW-T5HE2F-40K-AL||Old T5 HE 14W 4000K Fluorescent tube|
|SW-T5HE2F-50K-AL||Old T5 HE 14W 5000K Fluorescent tube|
|SW-T5HE2F-60K-AL||Old T5 HE 14W 6000K Fluorescent tube|
|SW-T5HE2F-65K-AL||Old T5 HE 14W 6500K Fluorescent tube|
