Electronic ballast Compatible. No fixture rewiring. No ballast bypassing. Directly replace old fluorescent lamp. Just plug & play with simplicity and ease.

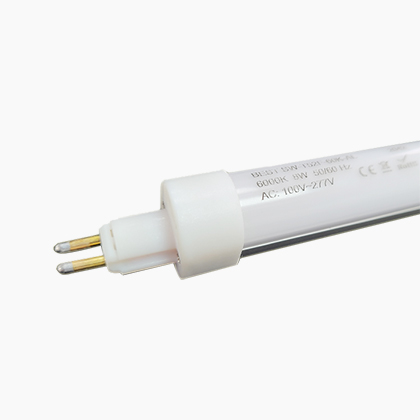

(Model: ECGall T5 HE 3F LED tube)
Directly replace old OLD T5 HE 21W 849mm fluorescent tube
Also able to work with mains voltage (100V ~ 240V)
Extra low discoloration of light during lifesapn of tube
Color rendering index Ra ≥ 82
30,000 hour lifespan
No warping, no bending
No mercury or hazardous materials
Note 1: Only suitable for double ended power input.
Note 2: Not Applicable to single ended input ( L and N mains power at the same side).
Based on amazing and unique ECG compatibility technology, the ECGall T5 LED series retrofit tube can work with AC main power to meet users’ needs. Electronic ballast Compatible. No fixture rewiring. No ballast bypassing. Directly replace old fluorescent lamp. Just plug & play with simplicity and ease.
ECGall T5 LED retrofit tube with ECG, non-dimmable LED drive or AC main power compatibility. It is very difficult for end users to tell from the difference between rewired or not rewired on fixture. The end-users need not concern the applicability in luminaire, even though the fixtures have been bypassed or rewired. The installation of LED lamps can be safe and very easy.
Our ECGall series T5 HE tubes solutions come with different tube length, ranging from 549mm, 849mm, 1149mm and 1449mm with different corresponding wattage.
Welcome to contact with our lighting specialist to know more about our all-in-one, or so-called universal type, T5 LED solutions.
|Direct Replacement Target||Old T5 HE 21W Fluorescent tube|
|Compatibility||Electronic ballast, line voltage ( 100V ~ 240V), direct DC power supply (141-338V)|
|Ballast Driving Voltage||Upon ballast output|
|Conventional Wattage Equivalent||21W|
|Base Cap||Mini bi pin G5|
|Life Span (Hours)||Ballast operation: 50000 hours
Mains operation: 30000 hrs
|Beam Angle (Degrees)||140|
|End cap type||Aluminum or plastic|
|PC cover||Clear / Milky|
|Color Rendering Index (CRI) Ra||> 82|
|Color Temperature (CCT)||2700K ~ 6500K|
|Lumens per Watt||130 lm/W|
|Order number||Direct Retrofit Target|
|EA-T5HE3F-27K-AL||Traditional T5 HE 21W 2700K Fluorescent tube|
|EA-T5HE3F-30K-AL||Traditional T5 HE 21W 3000K Fluorescent tube|
|EA-T5HE3F-40K-AL||Traditional T5 HE 21W 4000K Fluorescent tube|
|EA-T5HE3F-50K-AL||Traditional T5 HE 21W 5000K Fluorescent tube|
|EA-T5HE3F-60K-AL||Traditional T5 HE 21W 6000K Fluorescent tube|
|EA-T5HE3F-65K-AL||Traditional T5 HE 21W 6500K Fluorescent tube|
