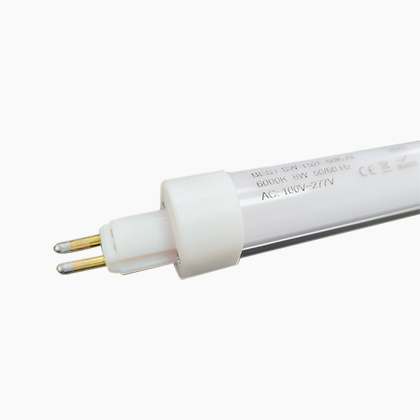

Product Model: AC-in T5 HO 3F 18W LED tube
LED tubes deliver longer life than conventional fluorescent lamps. Directly connect with AC mains voltage ( 100V ~ 240V) for LED luminaire or old fixtures whose ballast is bypassed. Just simply plug & play with safe and easy installation.
(Model: AC-in T5 HO 3F 18W LED tube)
Retrofit old T5 HO 39W 849mm fluorescent tube with simple rewiring of fixture.
Non-integrated outlook with double ended input
Compatible with mains voltage (100V ~ 240V)
30,000 hour lifespan
Color rendering index Ra ≥ 82
CCT available: 2700K ~ 6500K
Ultra-low discoloration of light over life of tube
No bending with good quality Aluminum housing.
No mercury or hazardous materials
Please note: Only suitable for working with AC mains voltage with double ended input fixture ( L and N mains at the different side of LED tube)
For the past years, our company has accumulated a lot of valuable experience to serve many clients in Europe, especially in ECG ballast compatible LED products. Our OEM service is not just specializing in the production process, but also focus in working with our customers in order to offer technical advice as a result for the manufacturing cost reductions. We believe our success is based on our customer satisfaction, and so drive us to be better and better, even pursuing to the perfect.
Currently, some of existing T5 lighting fixtures have been rewired to directly work with line voltage and some luminaires are already designed for AC mains T5 849mm LED tubes. We provide LED solutions of AC main voltage input T5 LED tubes with high performance and excellent quality.
My company has accumulated lots of LED technology, so we are able to help customers to design and develop customized products to their unique specifications. Welcome to contact with our LED specialist to get more information about our T5 LED tube solutions.
|Replacement Target||Old T5 HO 39W Fluorescent tube|
|Compatibility||Line voltage (100V ~ 240V), direct DC power supply (141-338V)|
|Conventional Wattage Equivalent||39W|
|Base Cap||Mini bi pin G5|
|Life Span (Hours)||30000 hrs|
|Beam Angle (Degrees)||140|
|Lumens per Watt||130 lm/W|
|Color Rendering Index (CRI) Ra||> 82|
|Color Temperature (CCT)||2700K ~ 6500K|
|End cap material||Aluminum or plastic|
|Rotatable end cap||Available upon request|
|PC cover||Clear / Milky|
|Order number||Retrofit Target|
|SW-T5HO3F-27K-AL||Old T5 HO 39W 2700K Fluorescent tube|
|SW-T5HO3F-30K-AL||Old T5 HO 39W 3000K Fluorescent tube|
|SW-T5HO3F-40K-AL||Old T5 HO 39W 4000K Fluorescent tube|
|SW-T5HO3F-50K-AL||Old T5 HO 39W 5000K Fluorescent tube|
|SW-T5HO3F-60K-AL||Old T5 HO 39W 6000K Fluorescent tube|
|SW-T5HO3F-65K-AL||Old T5 HO 39W 6500K Fluorescent tube|
