AC mains T5 12W 2F LED tube

T5 LED, 549 mm Replace T5 LED

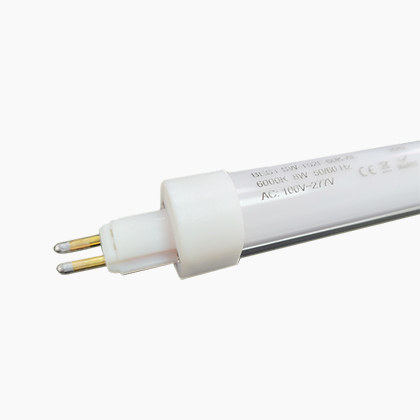

AC mains T5 12W 2F LED tube

Product Model: AC-in T5 HO 2F 12W LED tube

Directly connect with AC mains voltage (100V ~ 240V) for LED luminaire or old fixtures whose ballast is bypassed. Just simply plug & play with safe and easy installation...
Add Inquiry
Features

Directly connect with AC mains voltage (100V ~ 240V) for LED luminaire or old fixtures whose ballast is bypassed. Just simply plug & play with safe and easy installation.

(Model: AC-in T5 HO 2F 12W LED tube)
Retrofit old T5 HO 24W 549mm fluorescent tube with simple rewiring of fixture.
Compatible with mains voltage (100V ~ 240V)
Non-integrated outlook with double ended input
30,000 hour lifespan
Color rendering index Ra ≥ 82
Available CCT: 2700K ~ 6500K
No discoloration of light over life of tube
No mercury or hazardous materials
No bending with good quality Aluminum housing.
Please note: Only suitable for working with AC mains voltage. Not applicable to single ended input fixture ( L and N mains at the same end of LED tube)

Specifications
Descriptions Value
Replacement Target Old T5 HO 24W Fluorescent tube
Compatibility Line voltage (100V ~ 240V), direct DC power supply (141-338V)
Wattage 12W
Conventional Wattage Equivalent 24W
Base Cap Mini bi pin G5
Life Span (Hours) 30000 hrs
Beam Angle (Degrees) 140
Lumens 1560 lm
End cap material Aluminum or plastic
Rotatable end cap Available upon request
PC cover Clear / Milky
Diameter 16mm
Length 549 mm
Color Rendering Index (CRI) Ra > 82
Color Temperature (CCT) 2700K ~ 6500K
Lumens per Watt 130 lm/W
Specifications
Order number Direct Retrofit Target
SW-T5HO2F-27K-AL Old T5 HO 24W 2700K Fluorescent tube
SW-T5HO2F-30K-AL Old T5 HO 24W 3000K Fluorescent tube
SW-T5HO2F-40K-AL Old T5 HO 24W 4000K Fluorescent tube
SW-T5HO2F-50K-AL Old T5 HO 24W 5000K Fluorescent tube
SW-T5HO2F-60K-AL Old T5 HO 24W 6000K Fluorescent tube
SW-T5HO2F-65K-AL Old T5 HO 24W 6500K Fluorescent tube
