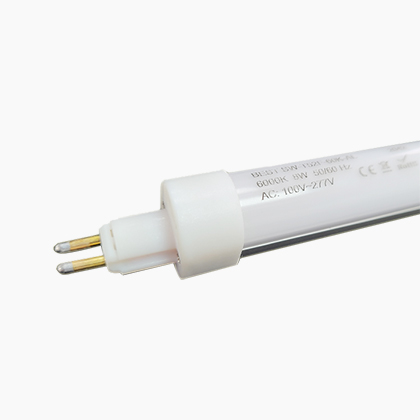

Product Model: ECGall T5 HE 4F LED tube
Can work both mains 230 VAC and electronic ballast without rewiring your light fixture. No fixture rewiring. No ballast bypassing. Directly replace conventional T5 He 28W fluorescent tube. Just plug & play with simplicity and ease.
(Model: ECGall T5 HE 4F LED tube)
Directly replace old OLD T5 HE 28W 1149mm fluorescent tube
Perfectly compatible with rapid & preheat & instant start electronic ballast
Support 1 ballast to multiple LED lamps(2/3/4)
Also able to work with mains voltage (100V ~ 240V)
Extra low discoloration of light during lifesapn of tube
Color rendering index Ra ≥ 82
30,000 hour lifespan
No warping, no bending
No mercury or hazardous materials
Fuse protection. Over current and over temperature protection
Reduce maintenance and installation cost
Note 1: Only suitable for double ended power input.
Note 2: Not Applicable to single ended input ( L and N mains power at the same side).
For the past years, we have been supplying custom-made light solutions to many clients in Europe, especially in ECG ballast compatible LED products. In gaining the valuable experience, our OEM service is not just specializing in the production process, but also focus in working with our customers in order to offer technical advice as a result for the manufacturing cost reductions. We believe our success is based on our customer satisfaction, and so drive us to be completed dedication to them.
The parameters in LED retrofit tubes are designed exactly the same as traditional FL, just with better LED light engine inside. Based on amazing and unique ECG compatibility technology, the ECGall T5 LED series retrofit tube can work with AC main power to meet users’ different needs.
It is not easy for end users to know if the lighting fixture has been rewired or not. With our all compatible LED solution, the end-users need not concern the applicability in luminaire. The installation of LED lamps can be safe and very easy.
Our ECGall series T5 HE tubes solutions come with different tube length, ranging from 549mm, 849mm, 1149mm and 1449mm with different corresponding wattage.
Welcome to contact with our lighting specialist to know more about our all-in-one, or so-called universal type, T5 LED solutions.
|Direct Replacement Target||Old T5 HE 28W Fluorescent tube|
|Compatibility||Electronic ballast, line voltage ( 100V ~ 240V), direct DC power supply (141-338V)|
|Ballast Driving Voltage||Upon ballast output|
|Conventional Wattage Equivalent||28W|
|Base Cap||Mini bi pin G5|
|Life Span (Hours)||Ballast operation: 50000 hours
Mains operation: 30000 hrs
|Beam Angle (Degrees)||140|
|Lumens per Watt||130 lm/W|
|Color Rendering Index (CRI) Ra||> 82|
|Color Temperature (CCT)||2700K ~ 6500K|
|End cap type||Aluminum or plastic|
|PC cover||Clear / Milky|
|Order number||Direct Retrofit Target|
|EA-T5HE4F-27K-AL||Conventional T5 HE 28W 2700K Fluorescent tube|
|EA-T5HE4F-30K-AL||Conventional T5 HE 28W 3000K Fluorescent tube|
|EA-T5HE4F-40K-AL||Conventional T5 HE 28W 4000K Fluorescent tube|
|EA-T5HE4F-50K-AL||Conventional T5 HE 28W 5000K Fluorescent tube|
|EA-T5HE4F-60K-AL||Conventional T5 HE 28W 6000K Fluorescent tube|
|EA-T5HE4F-65K-AL||Conventional T5 HE 28W 6500K Fluorescent tube|
