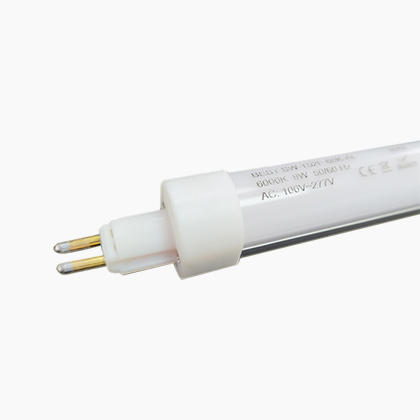

Product Model: AC-in T5 HO 4F 24W LED tube
Great design LED tubes offer longer time than traditional fluorescent tubes. Suitable for AC mains voltage ( 100V ~ 240V) input from LED fixtures or old luminaire whose ballast has been bypassed or removed. Simply plug & play with safe and easy installation.
(Model: AC-in T5 HO 4F 24W LED tube)
Effective to T5 HO 54W 1149mm fluorescent tube with simple rewiring of fixture.
Compatible with mains voltage (100V ~ 240V)
Non-integrated outlook with double ended input
Color rendering index Ra ≥ 82
CCT available: 2700K ~ 6500K
30,000 hour lifespan
SDCM ≤ 5 for excellent color consistency.
No bending with good quality Aluminum housing.
No mercury or hazardous materials
Please note: Only suitable for working with AC mains voltage with double ended input fixture ( L and N mains at the different side of LED tube)
We provide LED solutions of AC main voltage input T5 LED tubes with high performance and excellent quality. With high quality built-in LED driver, AC-IN T5 HO 24W LED tubes can offer tremendous energy savings and longer lifetime in order to shorten payback times with attractive TCO (Total Cost of Ownership).
My company has accumulated lots of LED technology, so we are able to help customers to design and develop customized products to their unique specifications. Any time, welcome to visit our website or contact with our LED specialist by email to get more information about our T5 LED tube solutions.
|Replacement Target||Old T5 HO 54W Fluorescent tube|
|Compatibility||mains input (100V ~ 240V), direct DC power supply (141-338V)|
|Conventional Wattage Equivalent||54W|
|Base Cap||Mini bi pin G5|
|Life Span (Hours)||30000 hrs|
|Beam Angle (Degrees)||140|
|Lumens per Watt||130 lm/W|
|Color Rendering Index (CRI) Ra||> 82|
|Color Temperature (CCT)||2700K ~ 6500K|
|Rotatable end cap||Available in plastic cap upon request|
|End cap material||Aluminum or plastic|
|PC cover||Clear / frosted|
|Order number||Direct Retrofit Target|
|SW-T5HO4F-27K-AL||T5 HO 54W 2700K Fluorescent tube|
|SW-T5HO4F-30K-AL||T5 HO 54W 3000K Fluorescent tube|
|SW-T5HO4F-40K-AL||T5 HO 54W 4000K Fluorescent tube|
|SW-T5HO4F-50K-AL||T5 HO 54W 5000K Fluorescent tube|
|SW-T5HO4F-60K-AL||T5 HO 54W 6000K Fluorescent tube|
|SW-T5HO4F-65K-AL||T5 HO 54W 6500K Fluorescent tube|
