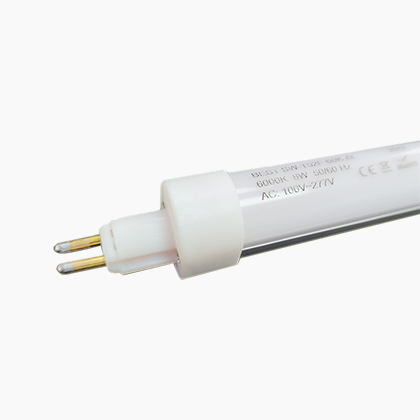

Product Model: ECGall T5 HE 5F LED tube
ECGall T5 HE 5F LED tube can work both electronic ballast and mains 230 VAC without rewiring your light fixture or bypassing the ballast. Directly replace conventional T5 HE 35W fluorescent tube. Just plug & play with safety, simplicity and ease.
(Model: ECGall T5 HE 5F LED tube)
Directly replace old T5 HE 35W 1449mm fluorescent lamp
Perfectly compatible with rapid & preheat & instant start electronic ballast
Also able to work with mains voltage (100V ~ 240V)
SDCM ≤ 5 for good discoloration of light
30,000 hour lifespan
Color rendering index Ra ≥ 82
No warping, no bending thanks to good quality aluminum housing
Mercury-free and RoHS compliant
Double fuse protection at each end.
Over current and over temperature protection
Reduce maintenance and installation cost
Note 1: Only suitable for double ended power input.
Note 2: Not Applicable to single ended input ( L and N mains power at the same side).
It is not easy for most of users to know whether the light fittings have been rewired or not. With our all compatible LED solution, the end-users don’t have to worry about this point. The installation of LED lamps can be safe and very easy.
The parameters of direct replacement LED tubes are designed exactly the same as traditional FL, just with better LED light engine inside. Based on amazing and unique ECG compatibility technology, the ECGall T5 LED series retrofit tube can work with AC main power to meet users’ different needs.
Welcome to visit our website or contact with our lighting specialist by email to know more about our all-in-one, or so-called universal type, T5 LED tube solutions.
|Direct Replacement Target||Old T5 HE 35W Fluorescent tube|
|Compatibility||Electronic ballast, mains power ( 100V ~ 240V), direct DC power supply (141-338V)|
|Ballast Driving Voltage||Upon ballast output|
|Conventional Wattage Equivalent||35W|
|Base Cap||Mini bi pin G5|
|Life Span (Hours)||Mains operation: 30000 hrs
Ballast operation: 50000 hours
|Beam Angle (Degrees)||140|
|Lumens per Watt||130 lm/W|
|Color Temperature (CCT)||2700K ~ 6500K|
|Color Rendering Index (CRI) Ra||> 82|
|End cap type||Aluminum or plastic|
|PC cover||Clear / Milky|
|Order number||Direct Replacement Target|
|EA-T5HE5F-27K-AL||Conventional T5 HE 35W 2700K Fluorescent tube|
|EA-T5HE5F-30K-AL||Conventional T5 HE 35W 3000K Fluorescent tube|
|EA-T5HE5F-40K-AL||Conventional T5 HE 35W 4000K Fluorescent tube|
|EA-T5HE5F-50K-AL||Conventional T5 HE 35W 5000K Fluorescent tube|
|EA-T5HE5F-60K-AL||Conventional T5 HE 35W 6000K Fluorescent tube|
|EA-T5HE5F-65K-AL||Conventional T5 HE 35W 6500K Fluorescent tube|
